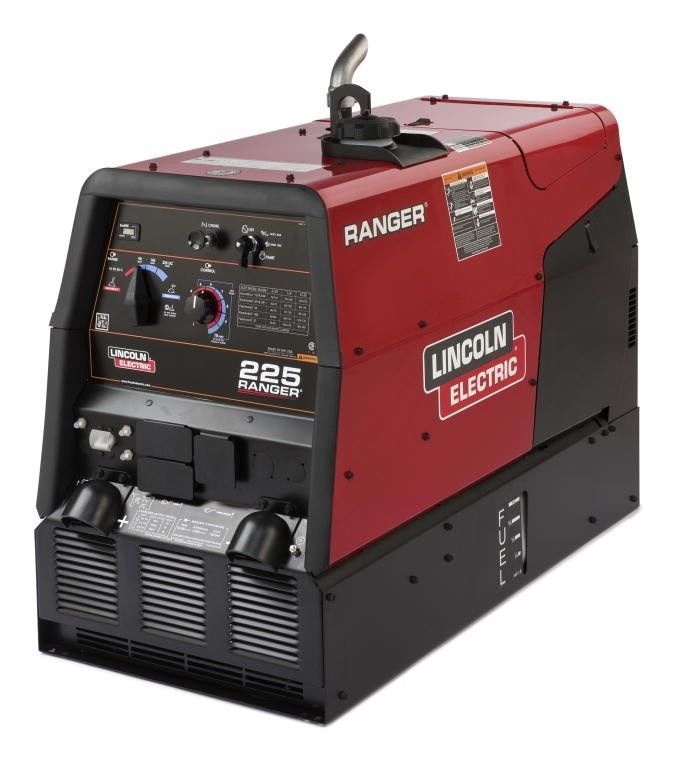

The Lincoln Ranger 225 Engine Welder Generator does a variety of basic welding jobs. And with 10,500 watts of peak AC generator power, it handles a bunch of other jobs: lights, grinder, Lincoln Electric inverter, plasma cutter (separate air supply needed) or emergency power.
Totally Enclosed Case
• Engine is fully protected
• 3 service access doors
• Low Noise – 76.4 dBA sound level at 23 ft. (7 m); 100.7 dB sound power (Lwa) at rated output
Versatile DC Welding
• Smooth DC welding output for a broad range of stick electrode types
• MIG, Flux-Cored and TIG capable (with optional equipment)
10,500 Watts Peak Single-Phase AC Generator Power
• Peak for motor starting
• 9,000 watts continuous power for generator, plasma cutter or inverter welder
• Handles lights, grinder, power tools
23 HP Kohler Gasoline Engine
• 2 cylinder, 4 cycle overhead valve air-cooled design
• Oil drain extension for easy oil changes
• 12 gallon tank for extended run times
• Visual fuel level gauge on both sides of unit
Rugged Reliability
• Welding and AC Generator Outputs Rated at 104 F (40 C)
| Brand | Lincoln |
|---|---|
| SKU | ILIN20140005 |
| MPN | LINK2857-1 |
| Mfgs MPN | K2857-1 |
| UPC | 015082888859 |
| Prop65 | Yes |
| Material | Mild Steel, Stainless Steel |
| Process | Flux-Cored, MIG, Stick, TIG |
| Max Amperage Output | 225 |
| Usage | Industrial |
| Phase | Single Phase |
| Manufacturer’s Warranty | 3 Years |
| Polarity | DC |
| Duty Cycle | 100% |
| Duty Cycle | 40% at 225A DC, 100% at 210A DC |
| Portability | 514 lbs |
| Skill Level | Career Welder |
| Discontinued Product | No |
