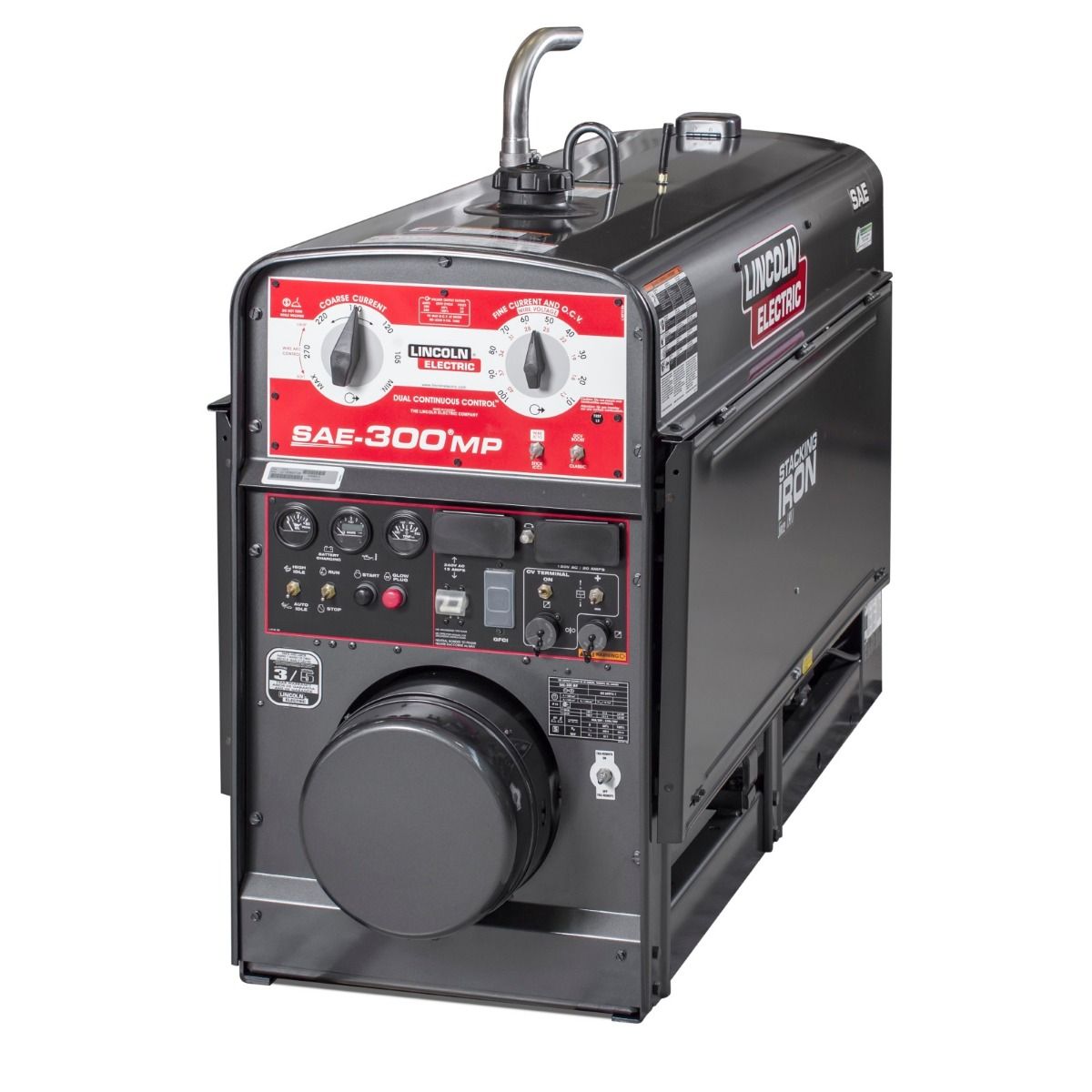

The SAE 300 MP (Multi Process) combines a rugged design with traditional pure DC generator technology for excellent welding performance in pipe, construction, and maintenance applications.
Applications:
• Pipeline
• Construction
• Maintenance & Repair
The Curved Exhaust Pipe is included, however it no longer comes with a “flapper” on it.
Features:
• Meets all EPA Tier 4 Requirements
• 3-Cylinder, water-cooled, 1800 RPM Kubota Diesel Engine
• Big fuel savings compared to previous engines
• Fuel gauge on control panel
• Two continuous dials on the control panel allow for a precise setting of both voltage and current for critical pipe welding applications
• Adjust the arc for a snappy “digging” arc for root and hot passes on pipe with cellulosic electrode, or for a soft “buttery” arc for pipe welding with low hydrogen electrode
• Pipeline operators will enjoy welding with the arc produced from the rotating armature/field coil system manufactured for many years by Lincoln Electric
• All copper windings enhance arc stability for a really smooth, high performance arc
• 300 Amps output @ 60% duty-cycle, welds up to 7/32″ fleetweld 5P + cellulosic and Excalibur low hydrogen electrodes.
Quick Specs:
• Output Range: 50-390A DC Welding, 3000 Watts AC Power
• Rated Output: 250A DC/30V/100%, 300A DC/32V/60%
• 3 Cylinders
• 24.7 HP @ 1800 RPM
• Weight: 1,432 lbs
• Dims: 37″H X 24″W X 63″L (46″H to top of exhaust)
| Brand | Lincoln |
|---|---|
| SKU | ILIN20140044 |
| MPN | LINK4090-1 |
| Mfgs MPN | K4090-1 |
| UPC | 015082628561 |
| Prop65 | Yes |
| Material | Mild Steel, Stainless Steel |
| Process | Air Carbon Arc Cutting and Gouging, Flux-Cored, MIG, Stick, TIG |
| Max Amperage Output | 390 |
| Usage | Industrial |
| Phase | Single Phase |
| Manufacturer’s Warranty | 3 Years |
| Polarity | DC |
| Duty Cycle | 100% |
| Duty Cycle | 100% at 250A |
| Portability | 1432 lbs |
| Skill Level | Career Welder |
| Discontinued Product | No |
