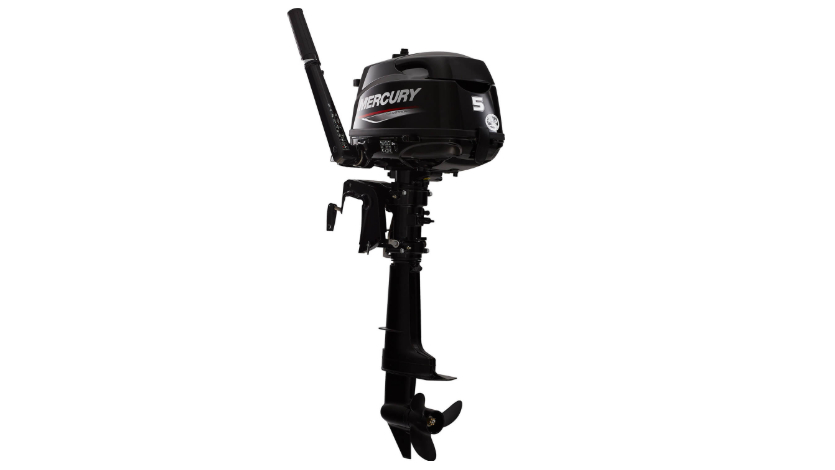

Buy Mercury 5 MXLH FourStroke Online
Power your boat, tender, dinghy, or auxiliary sailboat with the Mercury 5 MXLH FourStroke, a compact outboard designed for dependable everyday performance. This 2022 Mercury 5 hp model combines smooth four-stroke operation with easy manual starting, tiller steering, and a practical F-N-R gear shift for simple control on the water. Its 123 cc single-cylinder engine 5 horse outboard delivers reliable thrust across a 4500–5500 RPM range, while the 25-inch extra-long shaft makes it a 5hp outboard motor mercury smart mercury 5hp outboard choice for boats that require deeper transom reach.
Built in Mercury’s classic Phantom Black finish, the 5 MXLH is lightweight at just 57 lbs, making transport, mounting, and storage easier without sacrificing durability. The integrated 1.1 L fuel tank is ideal for short trips, while optional 12 L external fuel capacity mercury 5 hp outboard supports longer use. Water-cooled operation with thermostat control helps maintain consistent engine temperature, and built-in warning protection for low oil pressure and over-rev adds peace of mind.
With manual trim, six trim positions, shallow 5hp mercury outboard water drive, through-prop exhaust, and a supplied propeller, the Mercury 5 MXLH FourStroke is a practical, fuel-efficient outboard for boaters who want portability, control, and trusted Mercury engineering in one compact package. It is ready for easy handling, steady cruising, and daily boating.
Mercury 5 MXLH FourStroke – Product Specifications
| Specification | Details |
|---|---|
| Product Name | Mercury 5 MXLH FourStroke |
| Model Year | 2022 |
| Category | Outboard Motor |
| Horsepower | 5 HP |
| Engine Type | 1-Cylinder FourStroke Engine |
| Displacement | 7.5 CID / 123cc |
| Bore x Stroke | 2.32 x 1.77 in / 59 x 45 mm |
| Full Throttle RPM Range | 4500–5500 RPM |
| Shaft Length | 25 inches |
| Gearcase Ratio | 2.15:1 |
| Starting System | Manual Start |
| Steering | Tiller Steering |
| Gear Shift | Forward-Neutral-Reverse |
| Fuel System | Carbureted |
| Fuel Induction System | 2-Valve Pushrod Overhead Valve |
| Cooling System | Water-Cooled with Thermostat |
| Integrated Fuel Tank | 0.3 US gal / 1.1 L |
| Optional Fuel Tank | 3.2 US gal / 12 L |
| Trim System | Manual |
| Trim Positions | 6 |
| Shallow Water Drive | Yes |
| Shallow Water Trim Range | 16° |
| Exhaust System | Through Prop |
| Dry Weight | 57 lbs |
| Recommended Fuel | 87 Octane / Up to 10% Ethanol |
| Recommended Oil | Mercury FourStroke Oil 10W-30 |
| Engine Protection | Low Oil Pressure & Over-Rev Warning System |
| Ignition System | CDI with Electronic Spark Advance |
| Propeller | Included |
| Color | Phantom Black |
| Warranty Coverage | 5 Years Factory-Backed Limited Coverage |
Key Benefits of Mercury 5 MXLH FourStroke
1. Reliable 5 HP FourStroke Performance
The Mercury 5 MXLH FourStroke delivers smooth, quiet, and dependable power for small boats, tenders, inflatables, and auxiliary marine use. Its 123cc single-cylinder engine is designed for efficient everyday boating.
2. Ideal for Higher Transoms
With a 25-inch shaft length, this outboard motor is suitable for boats with taller transoms, giving better compatibility and improved performance in the right setup.
3. Easy Manual Operation
The manual start, tiller steering, and Forward-Neutral-Reverse gear shifting make this motor simple and user-friendly, even for boaters who prefer straightforward control.
4. Lightweight and Portable Design
Weighing only 57 lbs, the Mercury 5 MXLH is easy to handle, transport, mount, and store. This makes it a practical option for boaters who need a compact yet reliable outboard motor.
5. Fuel-Efficient Boating
The efficient FourStroke engine helps reduce fuel consumption while delivering dependable performance. The built-in 1.1 L fuel tank is ideal for short trips, while the optional 12 L external tank supports longer use on the water.
6. Better Engine Protection
This model includes low oil pressure and over-rev warning systems, helping protect the engine from damage and giving boaters more confidence during operation.
7. Great for Shallow Water Use
The shallow water drive feature makes it easier to operate near shorelines, docks, shallow areas, and calm coastal waters.
8. Durable Mercury Build Quality
Finished in Mercury’s classic Phantom Black, this outboard combines durable construction, practical design, and trusted Mercury marine engineering for long-lasting performance.
What type of boat is the Mercury 5 MXLH FourStroke suitable for?
The Mercury 5 MXLH FourStroke is ideal for tenders, dinghies, small fishing boats, utility boats, and auxiliary sailboat use, especially where a 25-inch extra-long shaft is required.
Does the Mercury 5 MXLH FourStroke come with a fuel tank?
Yes. It includes an integrated 1.1 L fuel tank, and an optional 12 L external fuel tank can be used for longer trips.
