Overview
Brand: BluePrint Engines
Manufacturer’s Part Number: BP3505CT
Part Type: Crate Engines
Product Line: BluePrint Engines GM 350 C.I.D. 390 HP Long Block Crate Engines
Summit Racing Part Number: MLL-BP3505CT
UPC: 00887753841162
Crate Engine Family: Chevy Small Block
Actual Engine Displacement: 5.7L/350
Crate Engine Cylinder Head Material: Aluminum
Engine Block Material: Cast iron
Advertised Compression Ratio: 9.2:1
Assembled: Yes
Engine Balance: Internal/External
Cam Style: Hydraulic roller, OE roller
Rear Main Seal Style: 1-piece
Intake Manifold Included: No
Cylinder Heads Included: Yes
Carburetor Included: No
Throttle Body Included: No
Distributor Included: No
Oil Pan Included: Yes
Valve Covers Included: Yes
Timing Cover Included: Yes
Water Pump Included: No
Harmonic Balancer Included: No
Flexplate Included: No
Flywheel Included: No
Air Cleaner Included: No
Spark Plugs Included: No
Spark Plug Wires Included: No
Computer Included: No
Wiring Harness Included: No
Supercharger Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: This engine is not designed, nor intended to be used in any marine applications. Designed for pre-1976 street vehicles or any off-road vehicle. Engines installed in vehicles registered and normally operated outside of the United States carry no warranty.

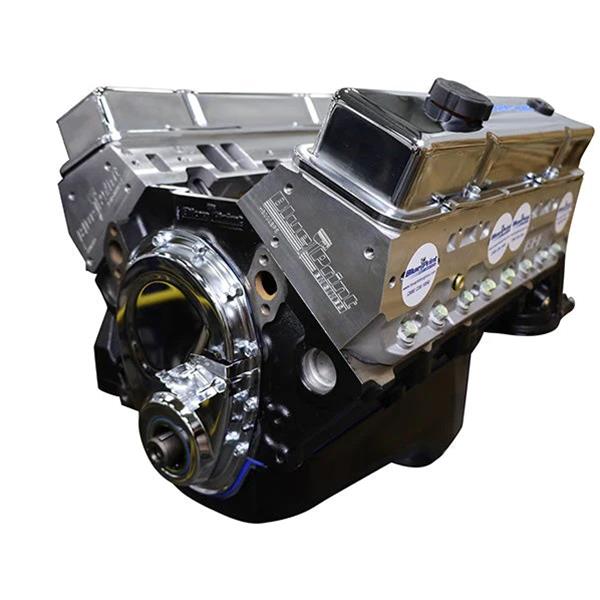

BluePrint Engines GM 350 C.I.D. 390 HP Long Block Crate Engines
BluePrint Engines GM 350 C.I.D. 390 HP Long Block crate engines deliver 390 hp and 410 lbs.-ft. of torque. They feature aluminum heads, hydraulic roller cam, cast iron crankshaft, hypereutectic pistons, and a compression ratio of 9.2:1. Additional specifications include:
* BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA
4-Bolt Main
4.000 in. Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage
* ROTATING ASSEMBLY:
Cast Iron Crankshaft
3.480 in. Stroke
Forged 5.700 in. connecting rods
Hypereutectic pistons
Internal Front/ External Rear engine balance
* CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads
64cc chamber
2.02 in. intake/1.60 in. exhaust valves
195cc intake/75cc exhaust runners
* CAM SPECS:
Cam Type: Roller
.495 Intake .502 Exhaust
220 Intake / 224 Exhaust duration
@ .050 – 114 degree lobe separation
* IGNITION TIMING:
32 Degrees Total at 3,500 rpm
* ALSO INCLUDES:
Valve covers
Oil pan
Timing cover
Dyno test results shipped with engine
30 month / 50,000 mile warranty
