Overview
Brand: BMR Suspension
Manufacturer’s Part Number: HPP021R
Part Type: Suspension Handling Packages
Product Line: BMR Level 4 Suspension Handling Packages
Summit Racing Part Number: BMR-HPP021R
UPC: 887753323903
Front Coil Springs Included: Yes
Rear Coil Springs Included: Yes
Rear Leaf Springs Included: No
Front Shocks/Struts Included: No
Rear Shocks/Struts Included: No
Front Sway Bar Included: Yes
Front Sway Bar Color: Red
Front Sway Bar Type: Hollow
Front Sway Bar Diameter (in.): 1.125 in.
Front Sway Bar Diameter (mm): 29.00 mm
Rear Sway Bar Included: Yes
Rear Sway Bar Color: Red
Rear Sway Bar Type: Hollow
Rear Sway Bar Diameter (in.): 1.000 in.
Rear Sway Bar Diameter (mm): 25.00 mm
Tie Rod Sleeves Included: No
End Link Bushings Included: Yes
Rear Leaf Spring Bushings Included: No
Sway Bar Bushings Included: Yes
Upper Trailing Arms Included: Yes
Lower Trailing Arms Included: Yes
Trailing Arm Mount Braces Included: No
Panhard Bar Included: No
Torque Arm Included: No
Upper Control Arms Included: No
Lower Control Arms Included: No
Front Strut Tower Bar Included: No
K-Member Included: No
K-Member Support Brace Included: No
Rear Strut Tower Bar Included: No
Subframe Connectors Included: Yes
Chassis Stiffener Included: No
Calipers Included: No
Rotors Included: No
Brake Pads Included: No
Brake Lines Included: No
Wheel Studs Included: No
Center Link Included: No
Spindles Included: No
Inner Tie Rod Ends Included: No
Outer Tie Rod Ends Included: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Notes:
Includes a total suspension bushing kit with rear cradle bushings, rear suspension bushings, and front suspension bushings. Also includes a driveshaft tunnel brace.

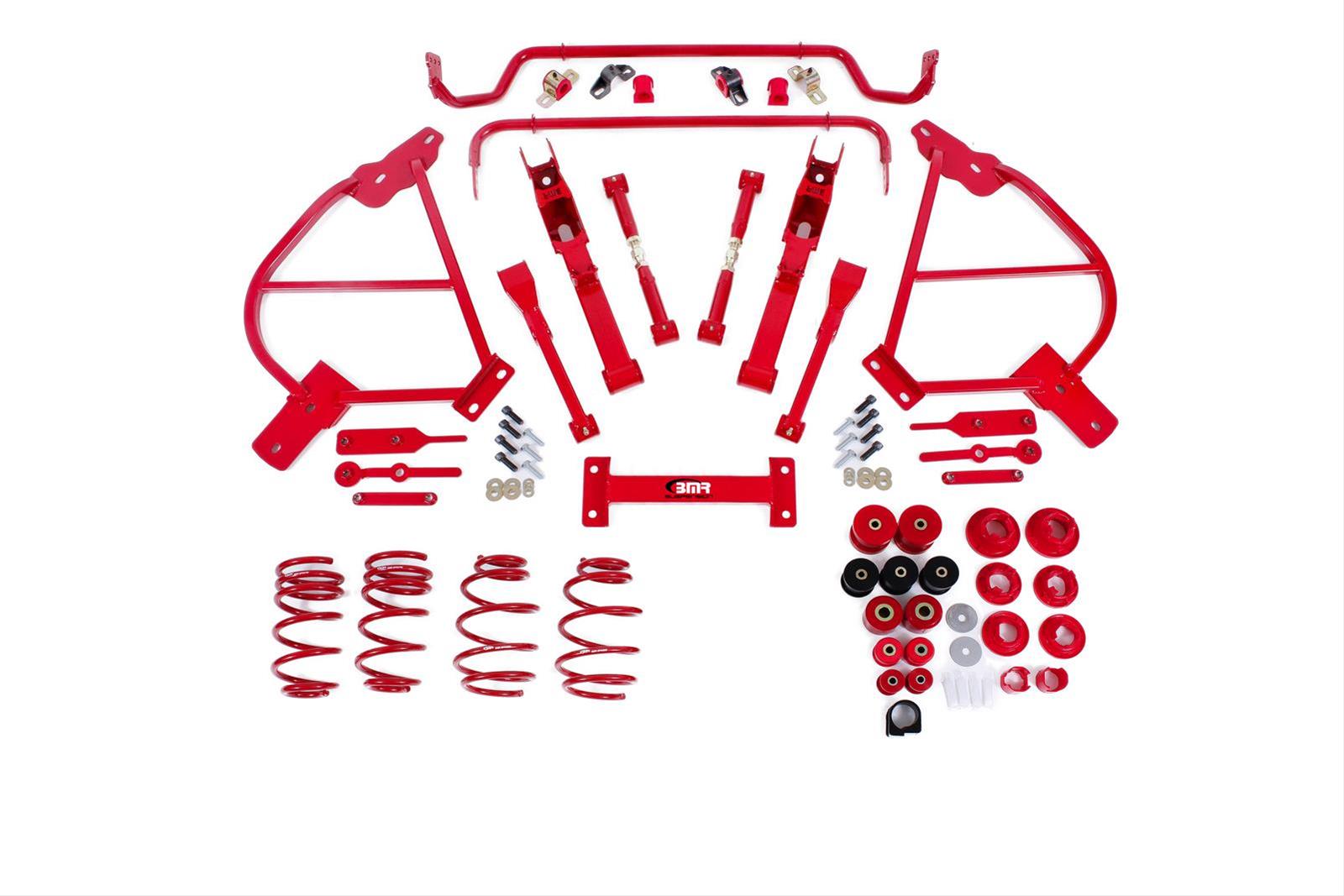

BMR Level 4 Suspension Handling Packages
BMR Level 4 suspension handling packages are designed with matched components to help increase overall handling. They’re available for fitment on a variety of late-model muscle car applications.
Level 4 handling packages include:
* Front and rear lowering springs
* Front and rear sway bars
* Total suspension bushing kit
* Sub-frame connectors, bolt-on
* Rear upper and lower control arms
* Driveshaft tunnel brace
* Trailing arms
* Toe rods, adjustable
