Brand: BluePrint Engines
Manufacturer’s Part Number: PS6320CTCK
Part Type: Crate Engines
Product Line: BluePrint Engines Pro Series Chevy 632 C.I.D. 815 HP Fully Dressed Long Block Crate Engines
Summit Racing Part Number: MLL-PS6320CTCK
UPC: 00887753744548
Crate Engine Family: Chevy Big Block
Actual Engine Displacement: 10.3L/632
Crate Engine Cylinder Head Material: Aluminum
Engine Block Material: Cast iron
Advertised Compression Ratio: 11.0:1
Assembled: Yes
Engine Balance: Internal
Cam Style: Hydraulic roller, OE roller
Rear Main Seal Style: 1-piece
Intake Manifold Included: Yes
Intake Manifold Style: Carbureted
Cylinder Heads Included: Yes
Carburetor Included: Yes
Throttle Body Included: No
Distributor Included: Yes
Oil Pan Included: Yes
Valve Covers Included: Yes
Timing Cover Included: Yes
Water Pump Included: Yes
Harmonic Balancer Included: Yes
Flexplate Included: No
Flywheel Included: No
Air Cleaner Included: No
Spark Plugs Included: Yes
Spark Plug Wires Included: Yes
Computer Included: No
Wiring Harness Included: No
Water Pump Style: Long
Supercharger Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Tall deck engine. Block has a mechanical fuel pump provision. Requires an internal balance flywheel/flexplate. The 1-piece rear main seal small block Chevy flywheel/ flexplate will not bolt to this engine. For further specifications, please see the Charts & Guides above. O balance flywheel or flexplate must be used. See the suggested parts tab for the correct flywheel or flexplate to use with this engine. Includes polished complete front accessory drive system.
Special Attention:
Included carburetor has a 1,250 cfm flow rate.

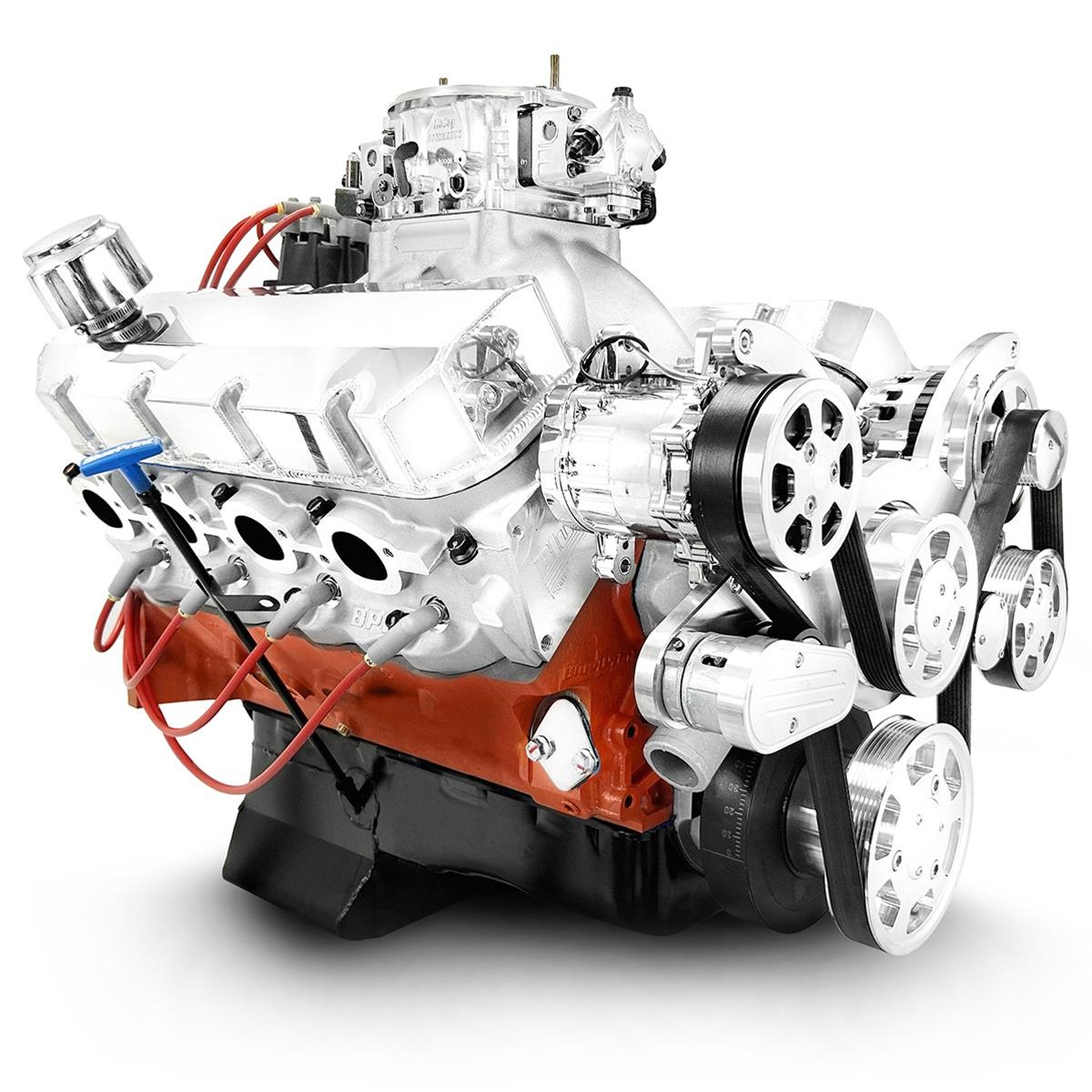

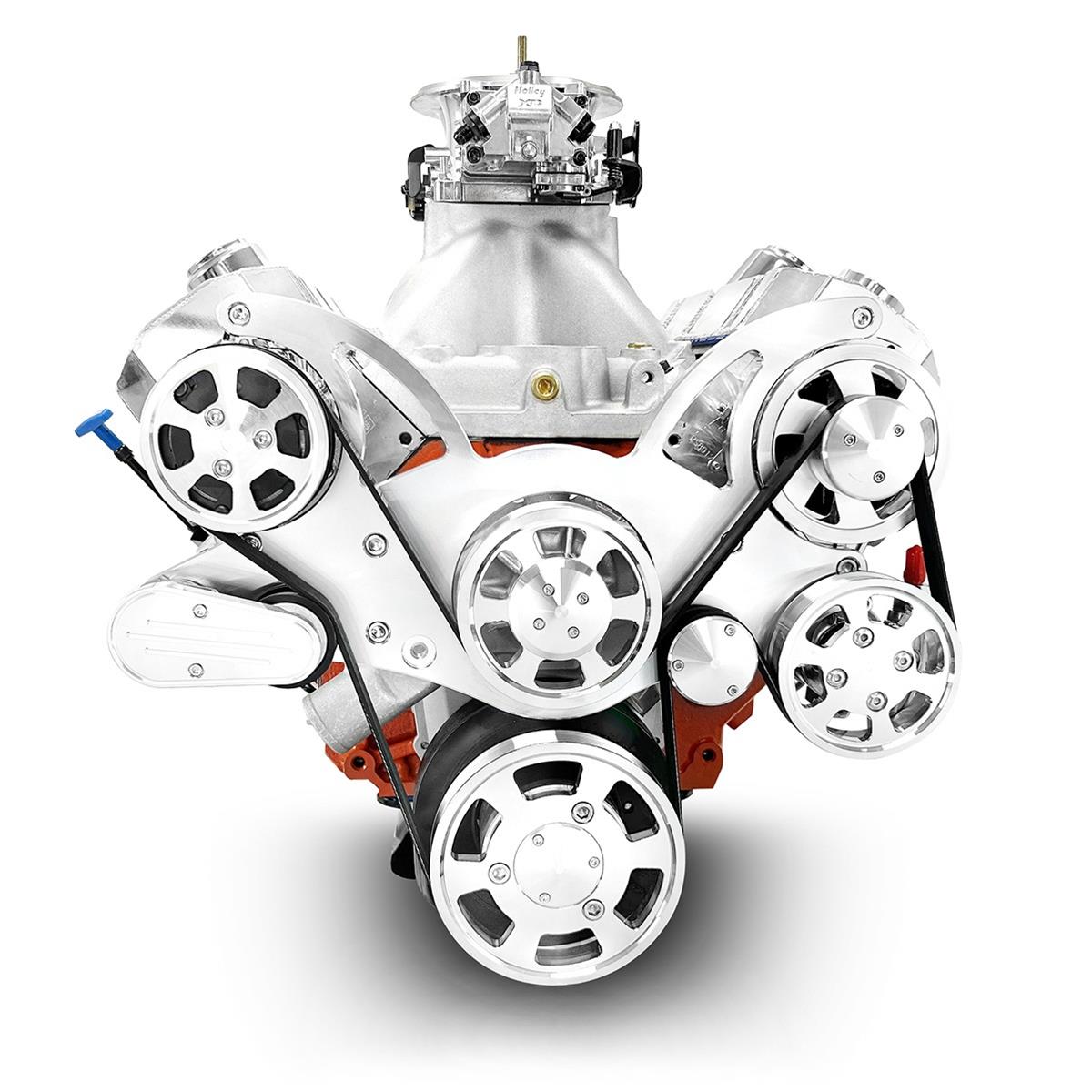

BluePrint Engines Pro Series Chevy 632 C.I.D. 815 HP Fully Dressed Long Block Crate Engines
Blueprint Pro Series is for those wanting maximum horsepower and durability.
BluePrint Engines Pro Series Chevy 632 c.i.d. 815 hp fully dressed long block crate engines offer any custom builder, hot rodder, or kit car builder an engine that’s been fully dyno tested, passed vigorous inspections, and is ready to power up your project.
Blueprint’s Pro Series 632 Stroker GM-style drop-in ready engines are dressed with aluminum heads, forged pistons, forged crankshaft, a hydraulic roller cam, and complete front accessory drive system with a polished or black finish (your choice).
Additional features:
* Tall deck with 4-bolt main (approximately .400 taller/wider than OEM block)
* Forged H-beam connecting rods
* Cylinder head specs:
— 119cc chamber
— 2.30 in. intake / 1.88 in. exhaust valves
— 358cc intake / 125cc exhaust runners
* Camshaft specs:
— .698 intake / .698 exhaust
— 272 intake / 282 exhaust duration
— at .050 – 110-degree lobe separation
* Installed accessory drive with A/C, P/S, alternator, water pump, belts, and pulleys
* Dyno test results shipped with engine
