Overview
Brand: Currie Enterprises
Manufacturer’s Part Number: CE-LF6503E53
Part Type: Axle Assemblies
Product Line: Currie Extreme 60 Crate Axles
Summit Racing Part Number: CUR-CE-LF6503E53
UPC: 811337031441
Axle Type: Bolt-in
Axle Housing Color: Black
Overall Length (in.): 70.00 in.
Axle Shafts Included: Yes
Axle Shaft Spline Quantity: 35
Brakes Included: Yes
Brake Type: Disc brake
Caliper Series: Stock
Caliper Piston Quantity: Two
Caliper Color: Natural
Rotor Outside Diameter (in.): 14.25 in.
Rotor Style: Solid surface
Third Member Included: Yes
Ring and Pinion Included: Yes
Ring and Pinion Ratio: 5.38:1
Wheel Studs Included: Yes
Wheel Stud Pattern: 8 x 6.50 in.
Wheel Stud Thread Size: 9/16 in.-18
Bearings Included: Yes
Seals Included: Yes
Remanufactured: No
Quantity: Sold as a kit.

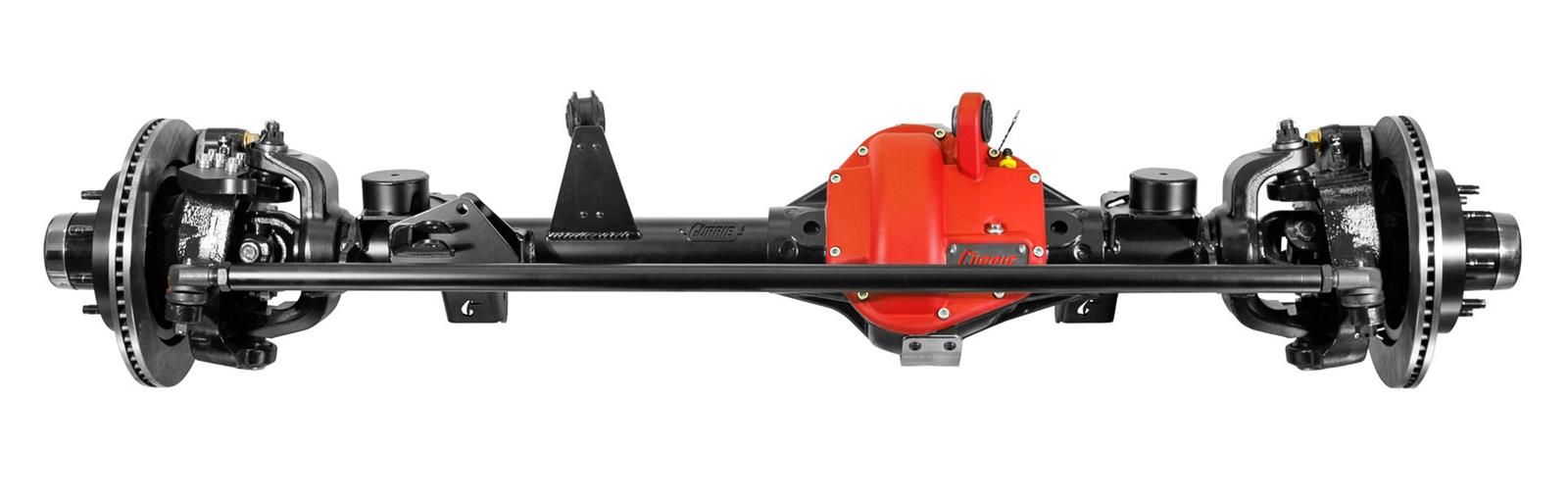

Currie Extreme 60 Crate Axles

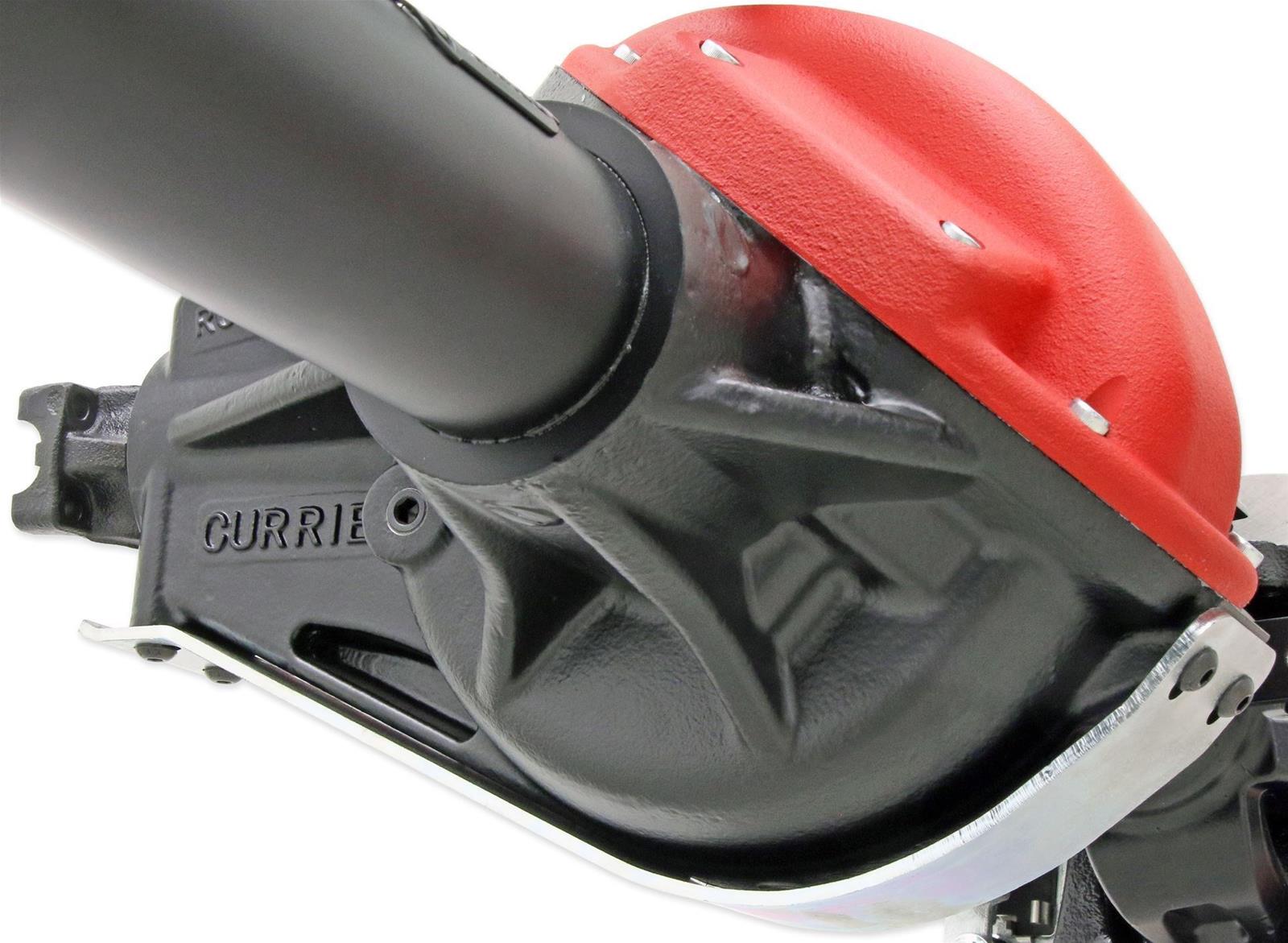

Currie Extreme 60 high-pinion rear crate axles are the strongest 60 Series axles offered, designed for severe off-road use with up to 40 in. tires and V8 conversion horsepower. They’re available in different gear ratios and center section locker types. Order the model recommended for your Jeep application.
Extreme 60 features:

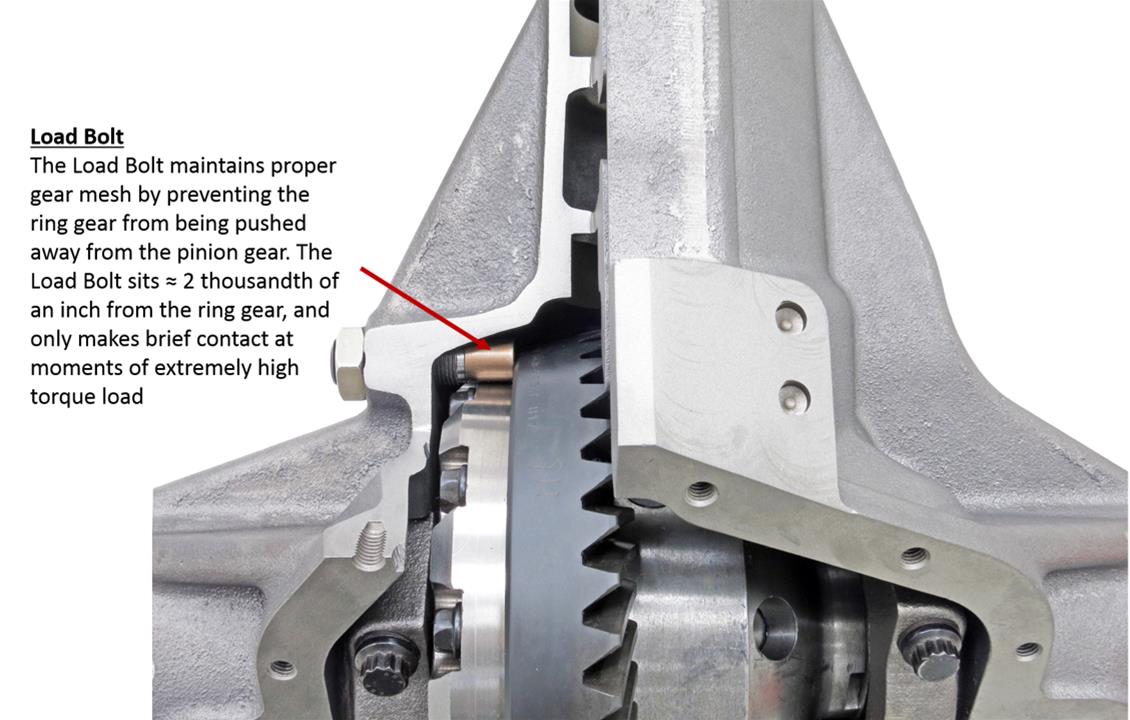

* High-pinion design with ring gear load bolt
* High-clearance radius bottom center section
* Low-friction hardened steel skid plate
* Desert racing-inspired full-floating hub assemblies
* Full-floating 35-spline 4340 chromoly axles
* Large 13.5 in. brake rotors
