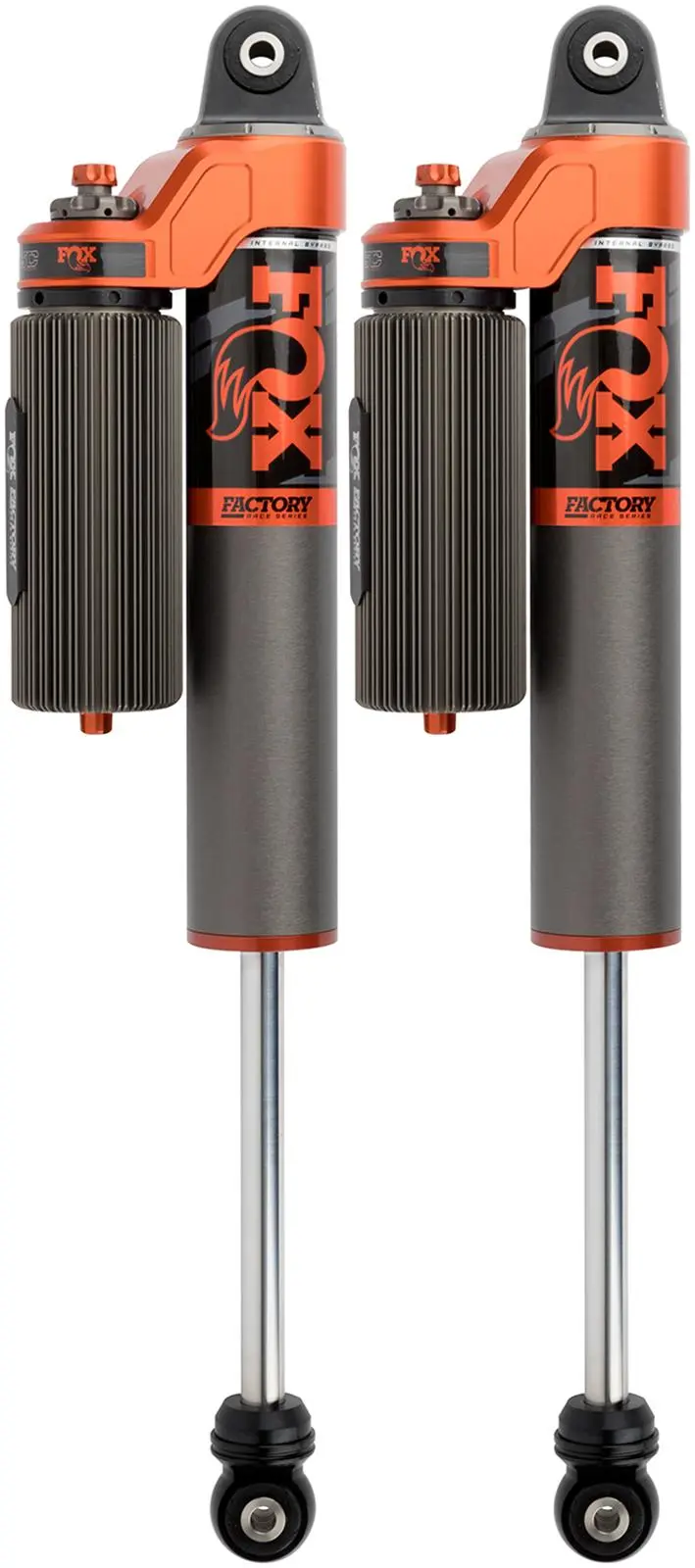

Fox Racing Shox 3.0 Factory Race Series Bypass Remote Reservoir Shocks 883-26-077
Fox Racing Shox 3.0 Factory Race Series Bypass Remote Reservoir Shocks 883-26-077 €1,670.00
Back to products
G-Comp Bare Subframe for 1962-67 Nova/Chevy II
G-Comp Bare Subframe for 1962-67 Nova/Chevy II €1,700.00

Fox Racing Shox 3.0 Factory Race Series Bypass Remote Reservoir Shocks 883-26-078

€1,399.00

Shocks, 3.0 Factory Race Series, Bypass Remote Reservoir, DSC Adjustable, Gas Charged, 3.50-4.50 in. Lift, Rear, Jeep, Wrangler, Pair

Compare
Add to wishlist
Category:
Description

Fox Racing Shox 3.0 Factory Race Series Bypass Remote Reservoir Shocks

Fox Racing Shox 3.0 Factory Race Series bypass remote reservoir shocks are designed to withstand incredible punishment and provide consistent performance you can rely on. Racing has always been the cornerstone of Fox product development, and their diverse line of bypass shocks are all made with one goal in mind—to win! The shocks are available in a variety of options for universal- or application-specific fitment.

Additional product features:

* Smooth bore and honed seamless steel bodies
* Zinc plated for a long-lasting finish
* Black anodized, CNC-machined 6061-T6 billet aluminum components
* 7075 hard anodized aluminum piston
* Tunable, velocity sensitive deburred valve shims
* High-temperature Viton® redundant sealing pack system with main, wiper, and scraper seals
* JM92 Advanced Suspension Fluid for improved performance at variable temperatures
* 17-4 H900 hard chrome plated stainless steel shafts
* PFTE-lined, heat-treated alloy steel spherical bearing
* Adjustments: Rotating body cap; compression and rebound valving; compression, rebound, and free bleed bypass adjusters
* Available in 3 tube

Overview

Brand: Fox Shox
Manufacturer’s Part Number: 883-26-078
Part Type: Shocks and Struts
Product Line: Fox Racing Shox 3.0 Factory Race Series Bypass Remote Reservoir Shocks
Summit Racing Part Number: FRS-883-26-078
UPC: 711745590489
Ride Height: Lifted
Ride Height Note: Additional ride height information may be available for your vehicle, please refer to the app tab.
Lifted Amount Range (in.): 3.50-4.50 in.
Extended Length (in.): 29.78
Collapsed Length (in.): 18.93
Adjustable Valving: Yes
Gas Charged: Yes
Upper Mount: Eyelet
Lower Mount: Eyelet
Bushing Material: Spherical bearing/PTFE
Boot Included: No
Body Diameter (in.): 3.000
Remanufactured: No
Quantity: Sold as a pair.
