Overview
Brand: QA1
Manufacturer’s Part Number: DK43-GMF1
Part Type: Suspension Handling Packages
Product Line: QA1 Level 3 Drag Racing Suspension Kits
Summit Racing Part Number: QA1-DK43-GMF1
UPC: 806990175243
Front Coil Springs Included: Yes
Rear Coil Springs Included: Yes
Rear Leaf Springs Included: No
Front Shocks/Struts Included: Yes

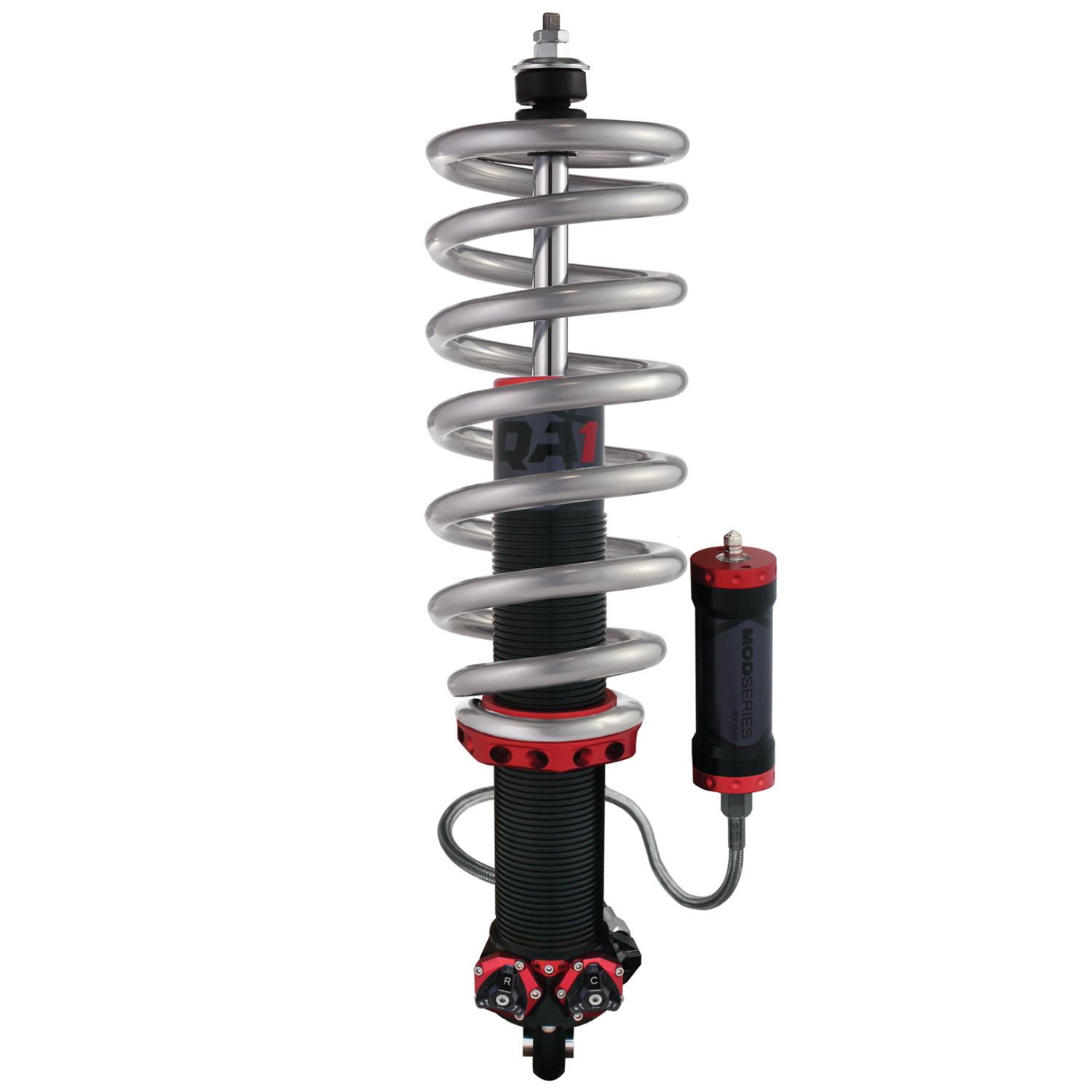

Front Shock Type: Double adjustable coilover
Rear Shocks/Struts Included: No
Rear Shock Type: Double adjustable coilover
Front Sway Bar Included: No

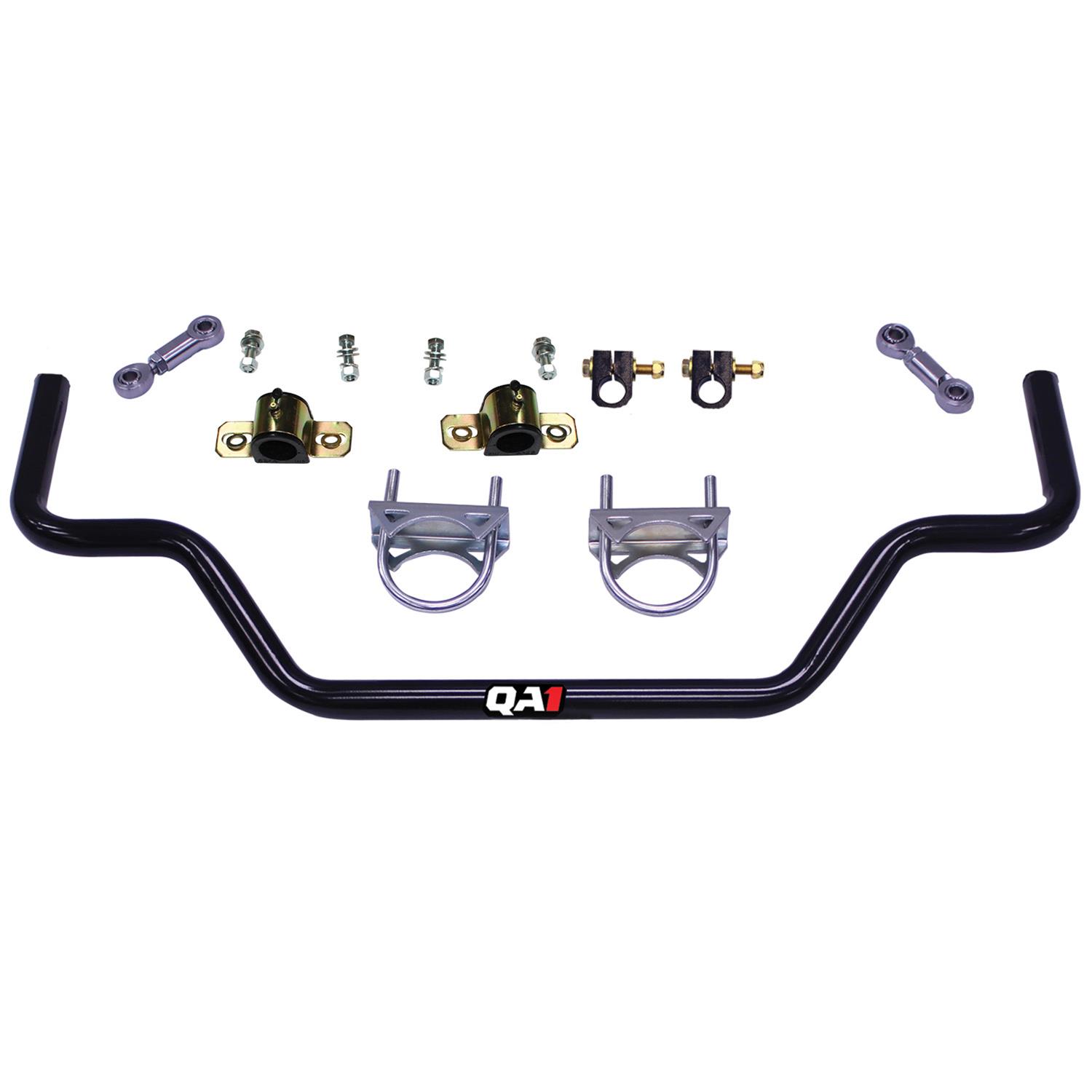

Rear Sway Bar Included: Yes
Rear Sway Bar Color: Black
Rear Sway Bar Type: Solid
Rear Sway Bar Diameter (in.): 0.875 in.
Rear Sway Bar Diameter (mm): 22.00 mm
Tie Rod Sleeves Included: Yes
End Link Bushings Included: No
Rear Leaf Spring Bushings Included: No
Sway Bar Bushings Included: Yes
Upper Trailing Arms Included: Yes
Lower Trailing Arms Included: No
Trailing Arm Mount Braces Included: Yes
Panhard Bar Included: No
Torque Arm Included: No

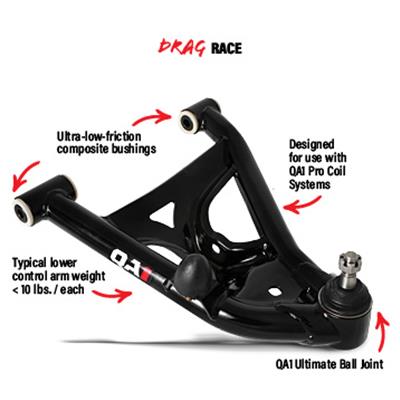

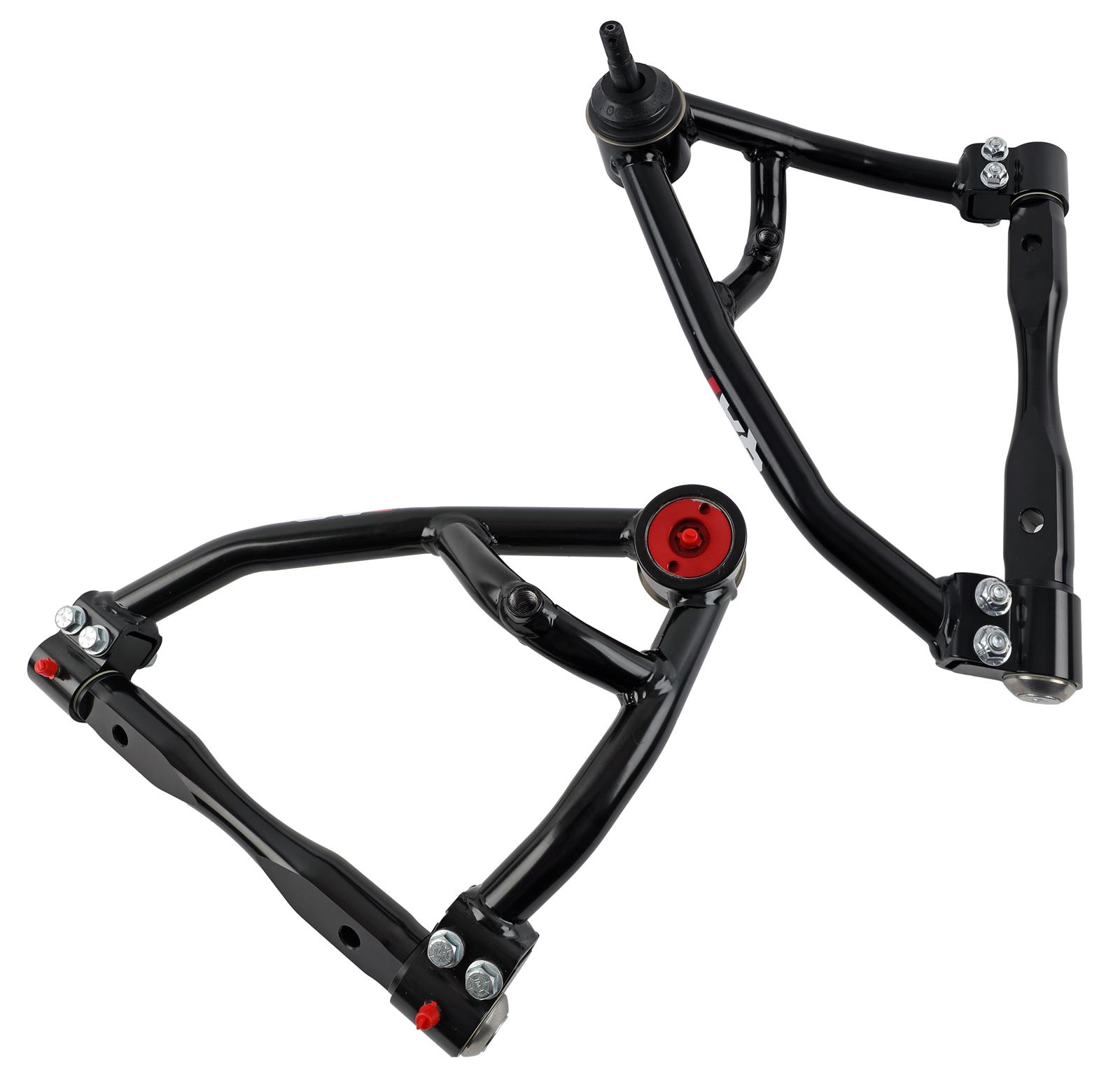

Upper Control Arms Included: Yes
Lower Control Arms Included: Yes
Control Arm Style: Tubular
Control Arm Material: Steel
Control Arm Color: Black
Front Strut Tower Bar Included: No
K-Member Included: No
K-Member Support Brace Included: No
Rear Strut Tower Bar Included: No

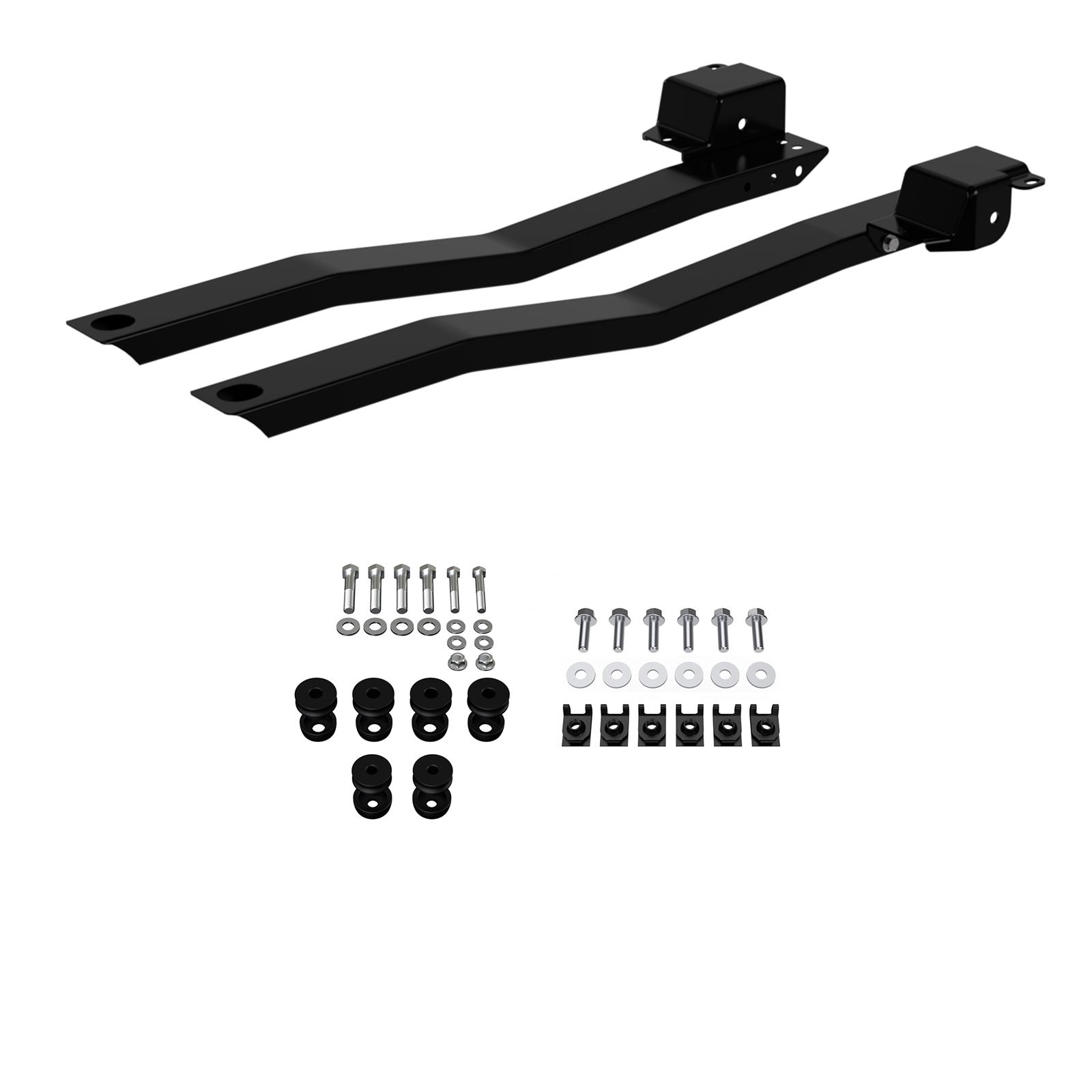

Subframe Connectors Included: Yes
Chassis Stiffener Included: No
Calipers Included: No
Rotors Included: No
Brake Pads Included: No
Brake Lines Included: No
Wheel Studs Included: No
Center Link Included: No
Spindles Included: No
Inner Tie Rod Ends Included: No
Outer Tie Rod Ends Included: No
Bushing Material: Polyurethane/Steel
Bushing Color: Black
Mounting Hardware Included: No
Quantity: Sold as a kit.
Notes: Included coil over springs feature a rate of 300 lbs in the front and 170 lbs in the rear.

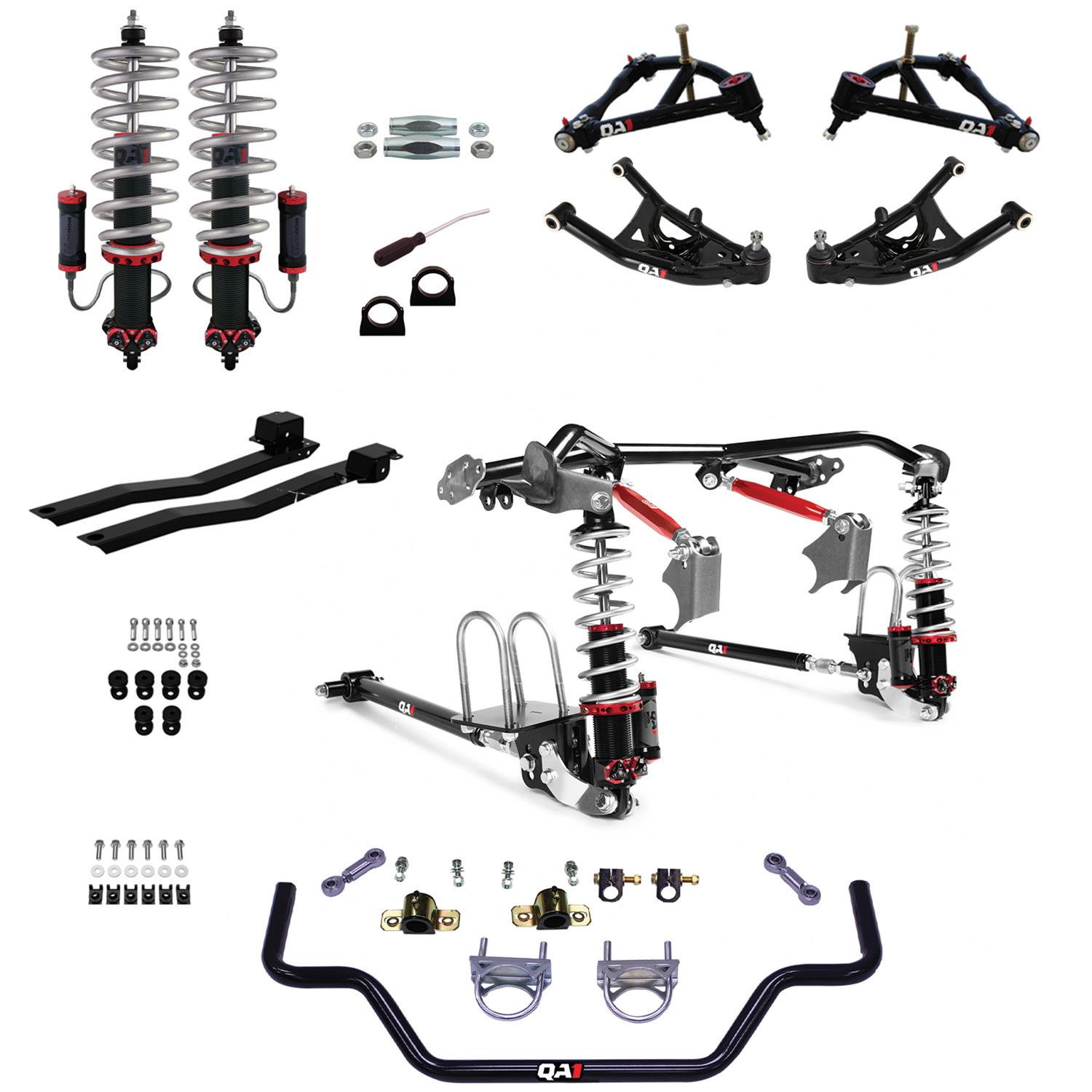

QA1 Level 3 Drag Racing Suspension Kits
QA1 Level 3 Drag Racing suspension kits furnish your vehicle with the ability for a better launch, straight-line stability, and consistent performance. These kits utilize high-quality parts engineered together as a system to take the guesswork out of choosing the right pieces to support your performance goals. Many feature QA1’s MOD Series front drag suspension kit or MOD Series front or front and rear Pro Coil system matched with Drag Race control arms and additional components to equip your vehicle with race-winning performance. Choose the kit designed for your vehicle.
