Brand: RideTech
Manufacturer’s Part Number: 11360201
Part Type: Suspension Handling Packages
Product Line: RideTech 1973-87 C-10 Complete Coilover Systems
Summit Racing Part Number: ART-11360201
UPC: 840123505842
Front Coil Springs Included: Yes
Rear Coil Springs Included: Yes
Rear Leaf Springs Included: No
Front Shocks/Struts Included: Yes
Front Shock Type: Single adjustable monotube coilover
Rear Shocks/Struts Included: Yes
Rear Shock Type: Single adjustable monotube coilover
Front Sway Bar Included: Yes
Front Sway Bar Color: Black
Front Sway Bar Type: Solid
Front Sway Bar Diameter (in.): 1.500 in.
Front Sway Bar Diameter (mm): 38.00 mm
Rear Sway Bar Included: No
Tie Rod Sleeves Included: No
End Link Bushings Included: No
Rear Leaf Spring Bushings Included: No
Sway Bar Bushings Included: Yes
Upper Trailing Arms Included: No
Lower Trailing Arms Included: No
Trailing Arm Mount Braces Included: No
Panhard Bar Included: Yes
Torque Arm Included: No
Upper Control Arms Included: Yes
Lower Control Arms Included: Yes
Control Arm Style: Tubular
Control Arm Material: Steel
Control Arm Color: Black
Front Strut Tower Bar Included: No
K-Member Included: No
K-Member Support Brace Included: No
Rear Strut Tower Bar Included: No
Subframe Connectors Included: No
Chassis Stiffener Included: No
Calipers Included: No
Rotors Included: No
Brake Pads Included: No
Brake Lines Included: No
Wheel Studs Included: No
Center Link Included: No
Spindles Included: Yes
Inner Tie Rod Ends Included: No
Outer Tie Rod Ends Included: No
Bushing Material: Delrin®
Bushing Color: Black
Mounting Hardware Included: Yes
Quantity:Â Sold as a kit.

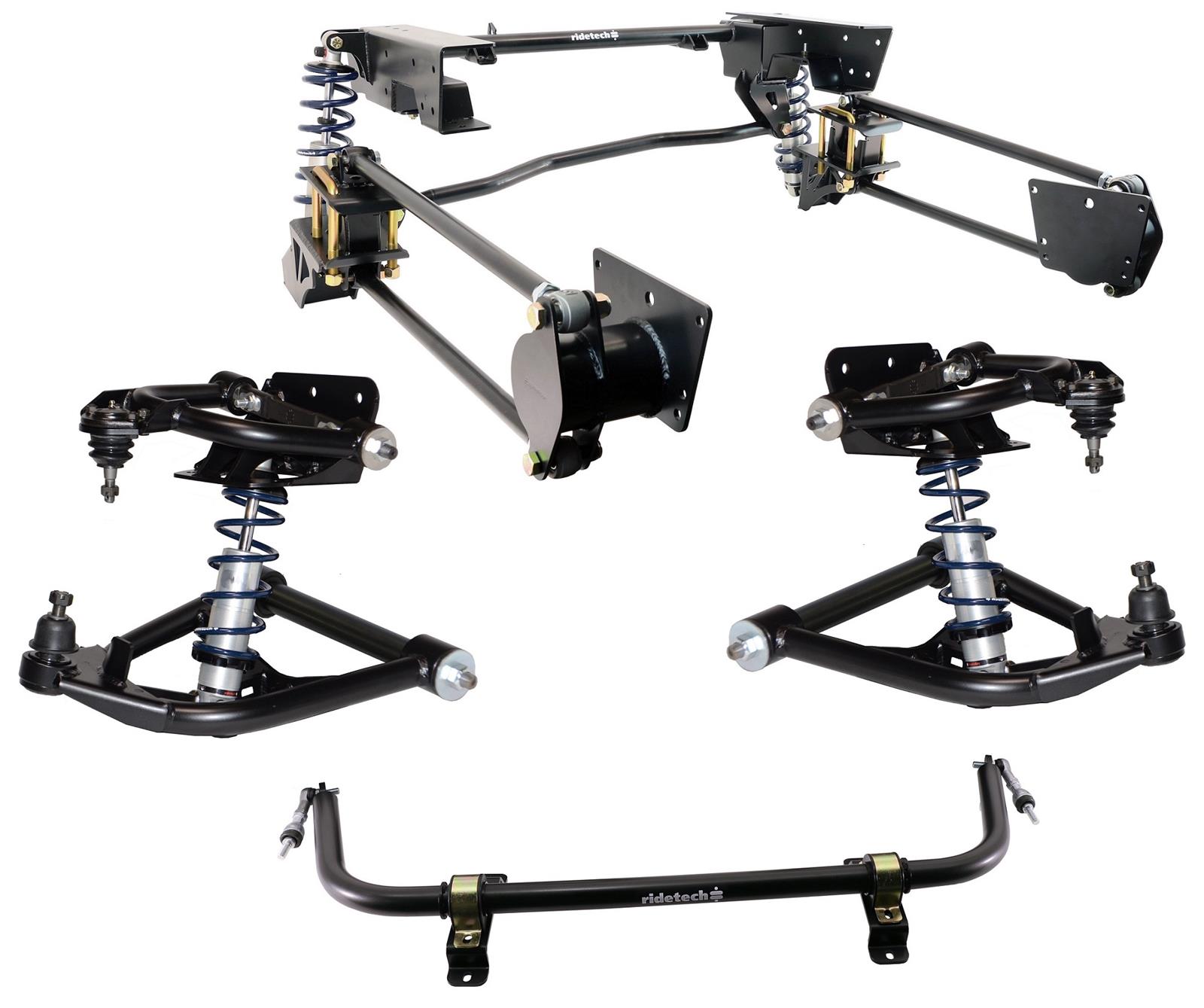

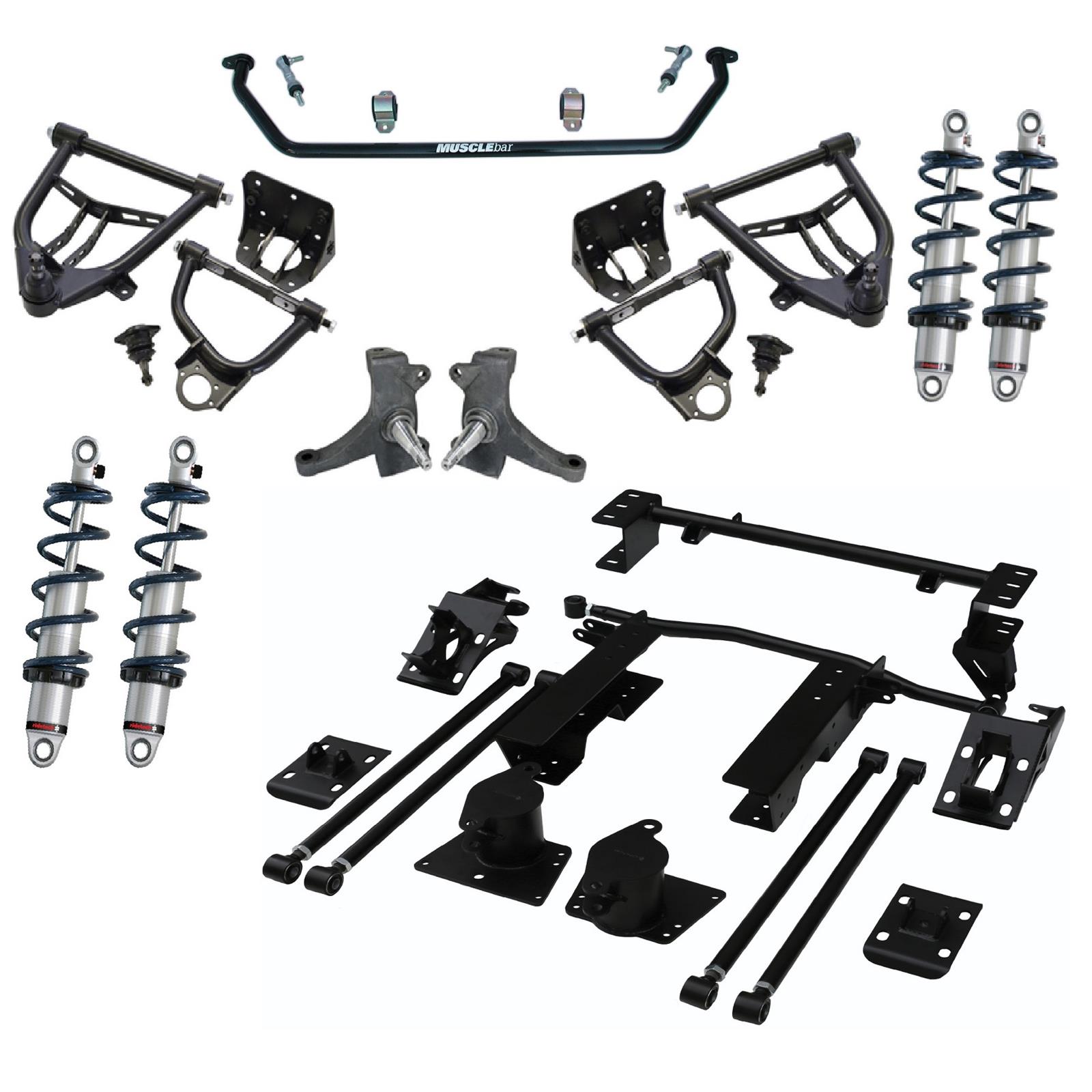

RideTech 1973-87 C-10 complete coilover systems will turn your pickup into a true muscle truck. They include everything needed to dramatically improve the handling, ride quality, and stance of your “square fender” pickup. These C-10 coilover kits are 100 percent CAD-engineered in-house and refined on RideTech’s exclusive test track. Your C-10 has an excellent frame design with inherently low rocker height and good strength. RideTech complete coilover suspension systems take that great starting point and turn it into a proper muscle truck with high performance handling and sporty stance.

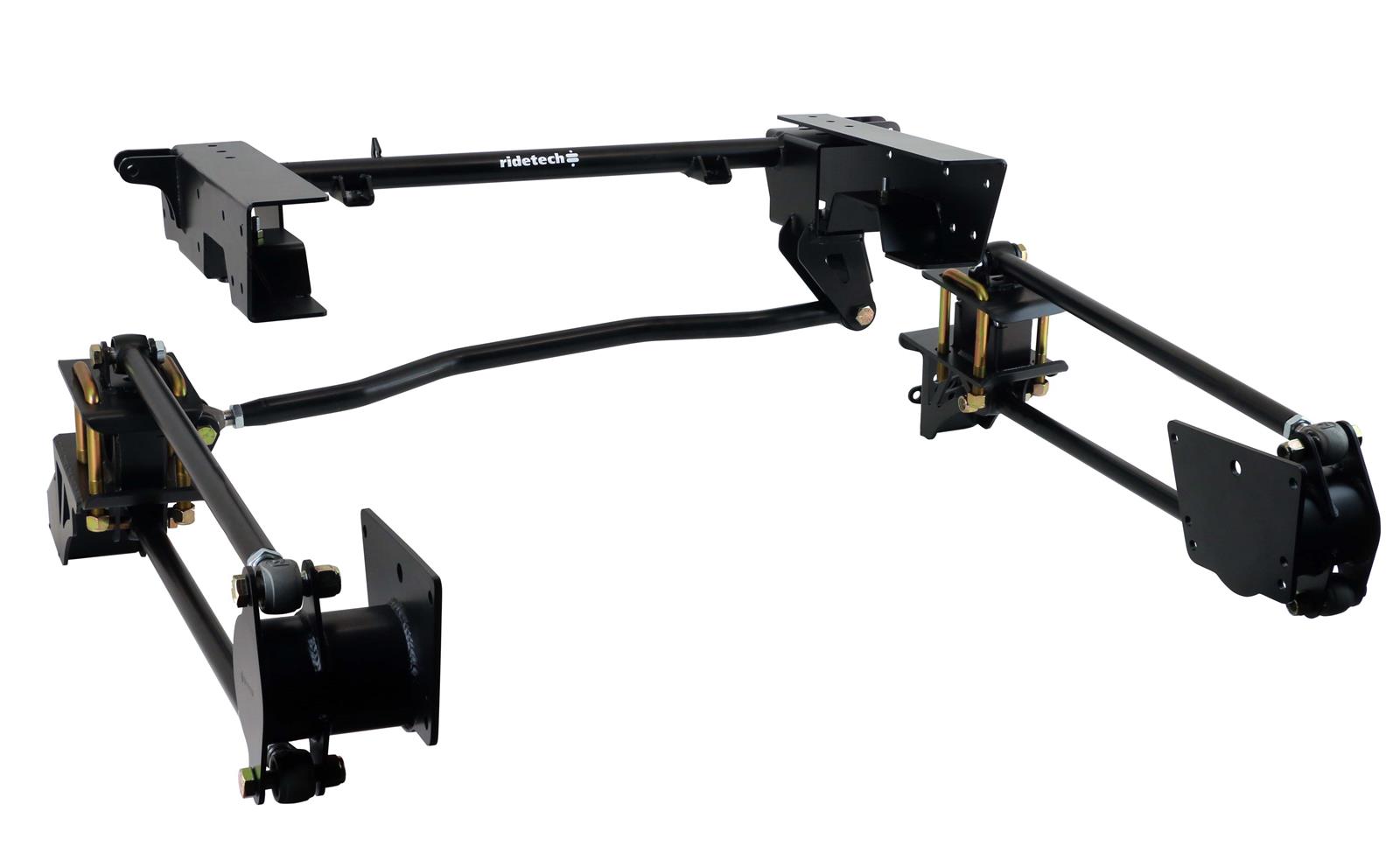

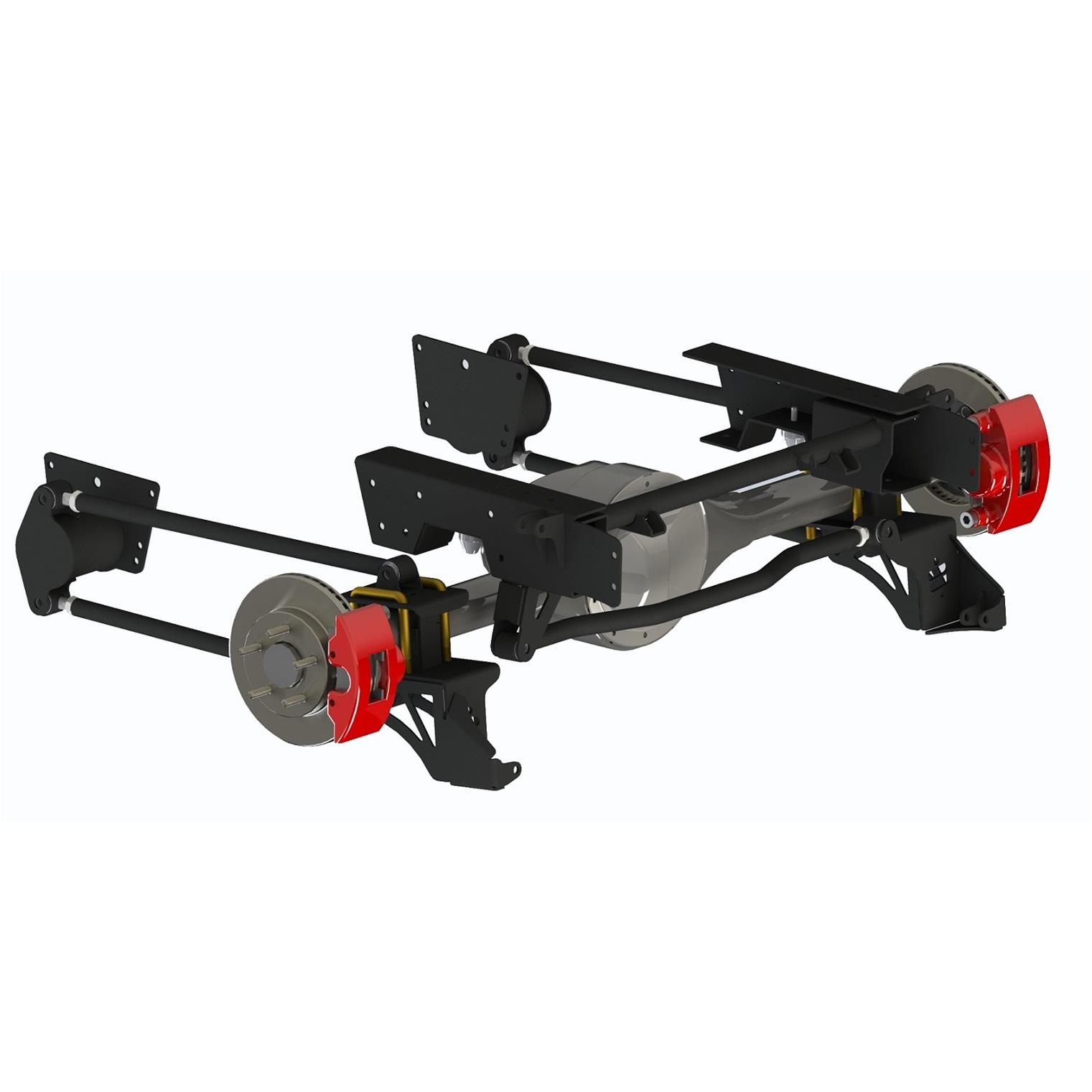

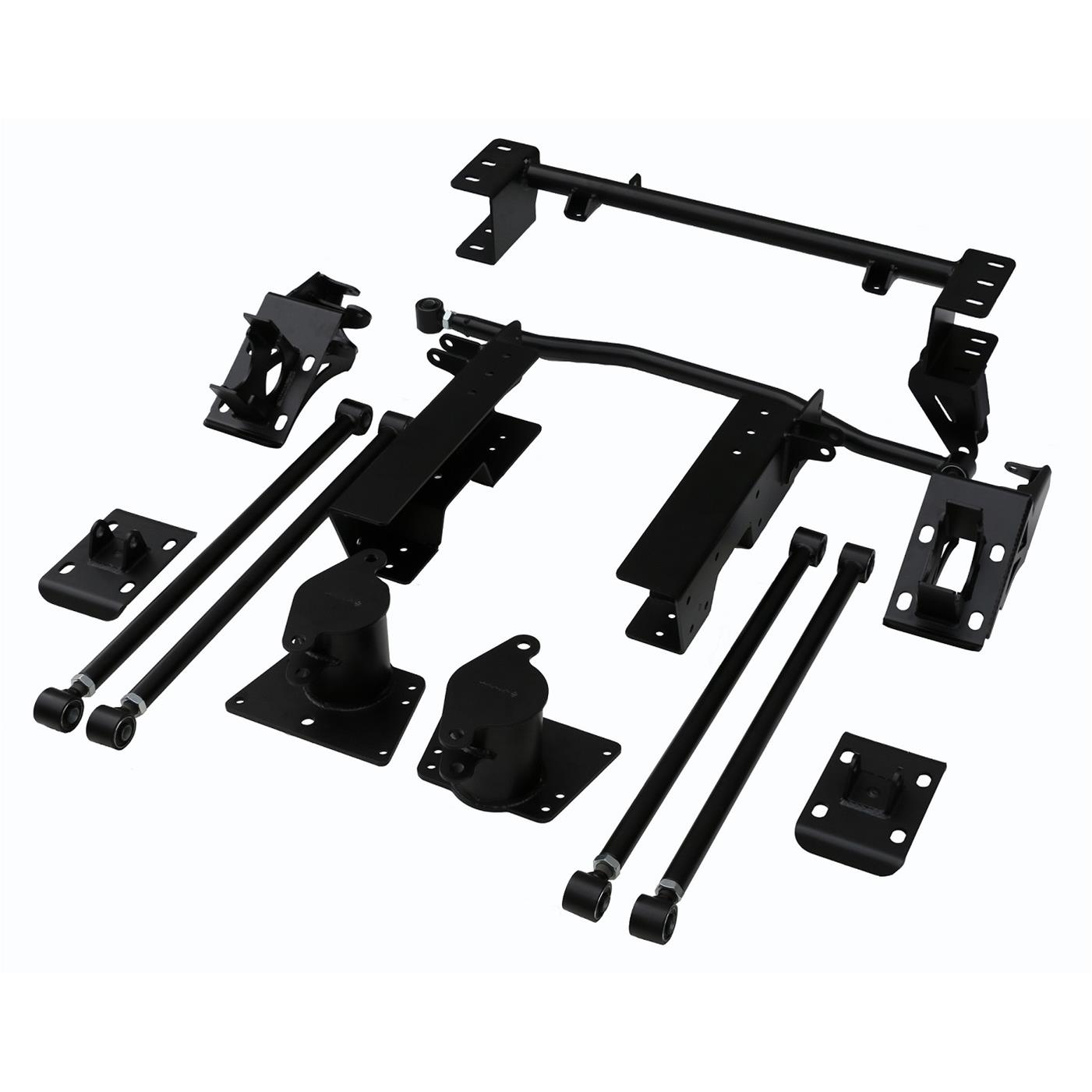

* 4-link kit, 100 percent bolt-on design with minimal cutting and no welding required
* C-notch brackets tie in directly with the upper crossmember, while link bar mounts use factory bolt holes in front along with factory axle pad mounting points

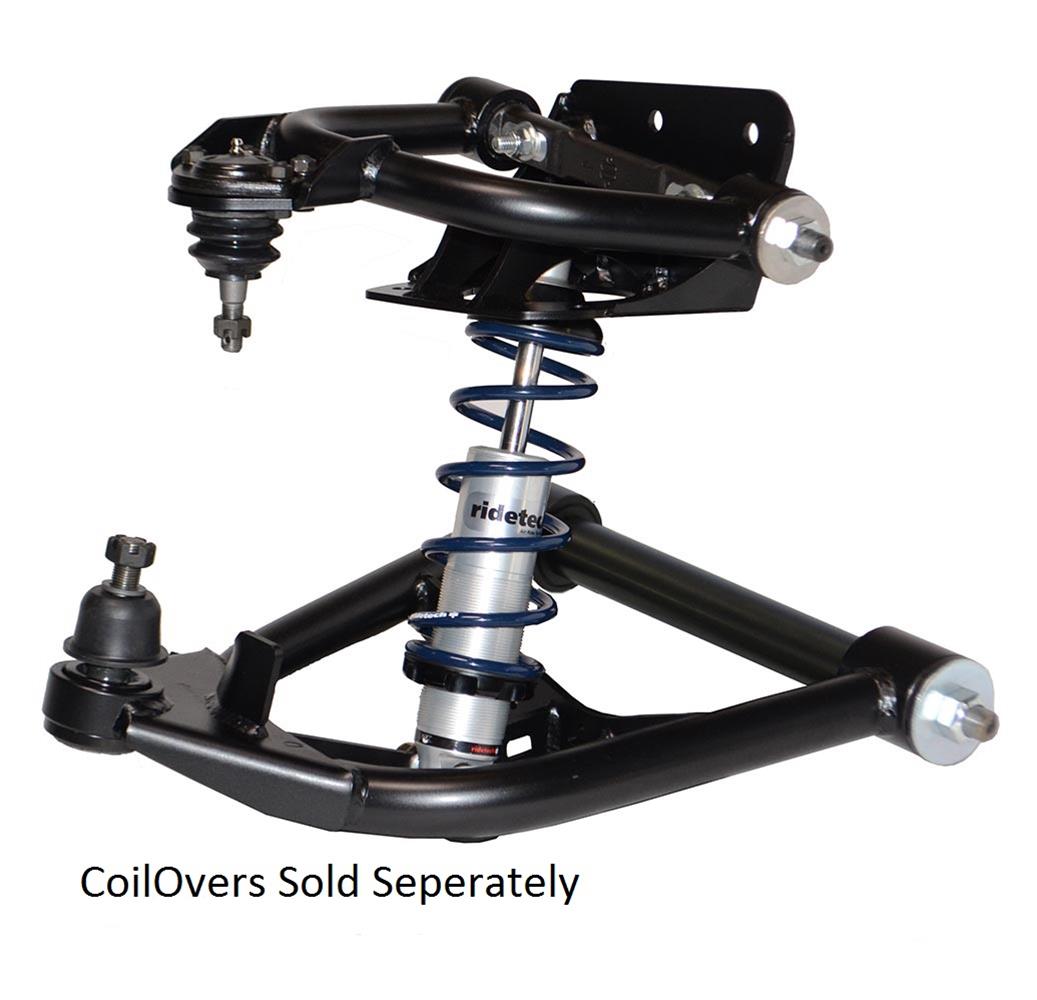

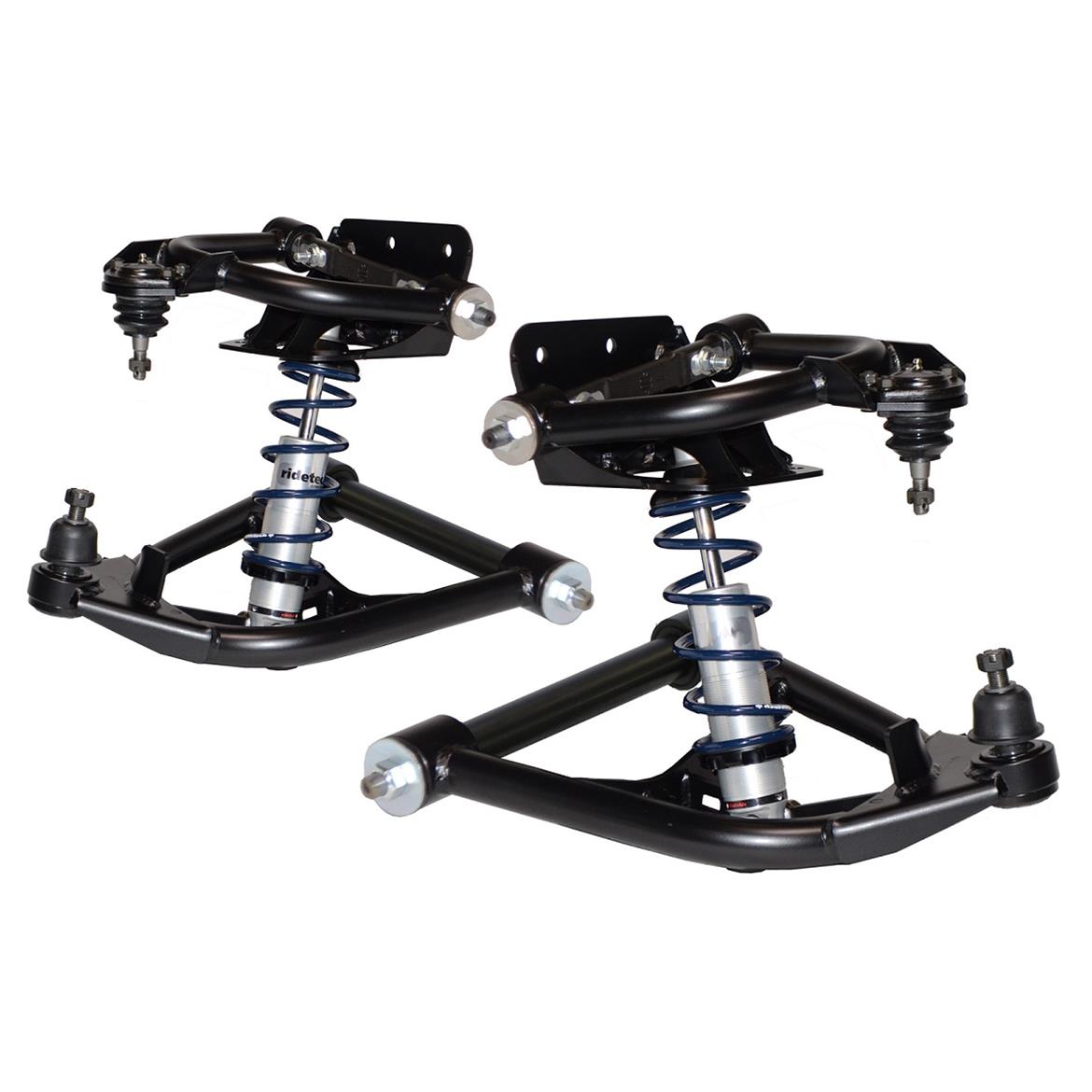

* Front StrongArm control arms

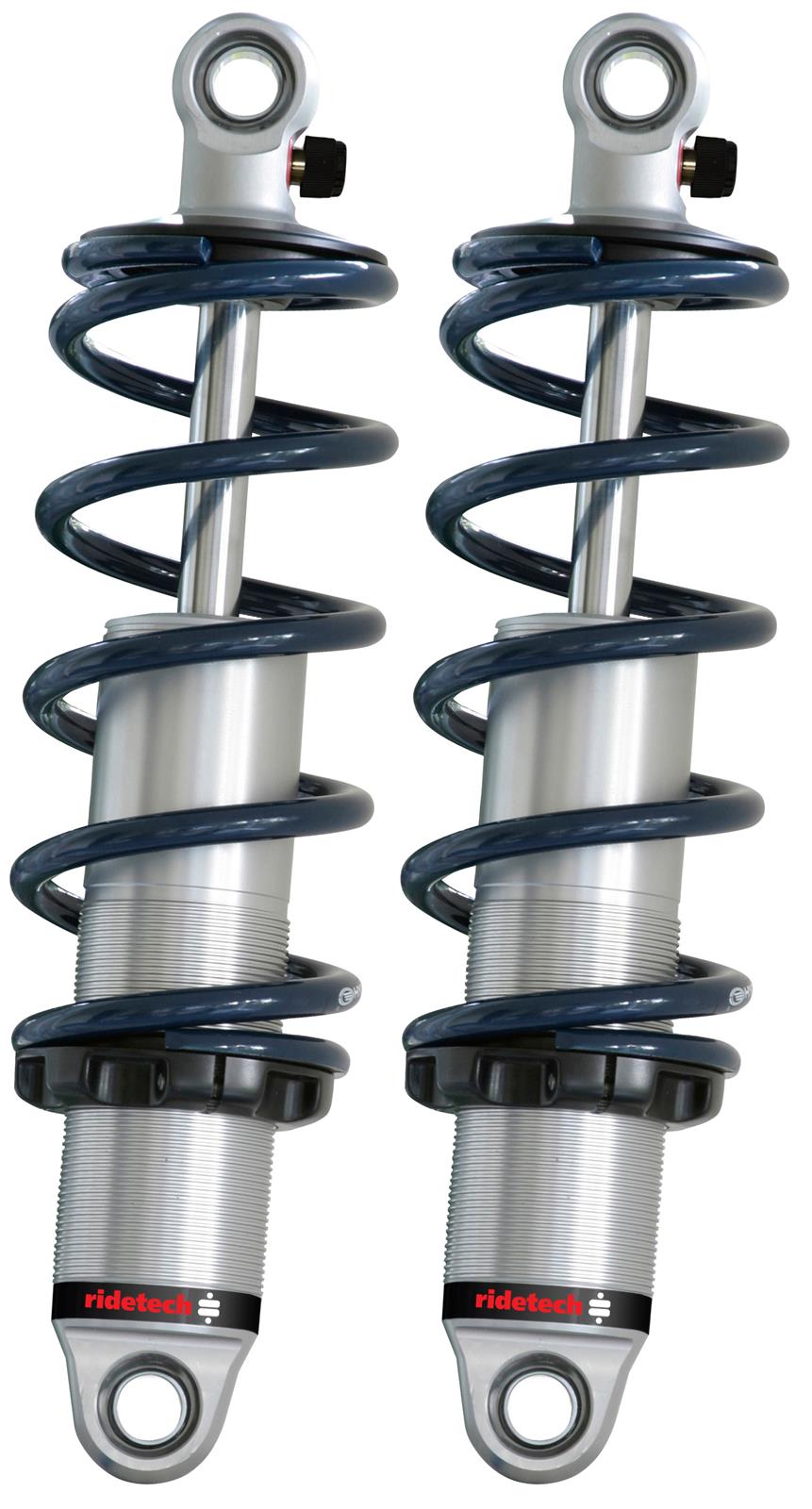

* HQ Series single-adjustable coilover shocks with 24 degrees of rebound adjustment to help you dial-in ride quality and fine-tune handling characteristics

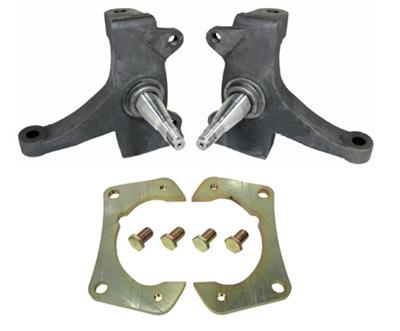

* Drop spindles
* Front upper coilover mounting brackets

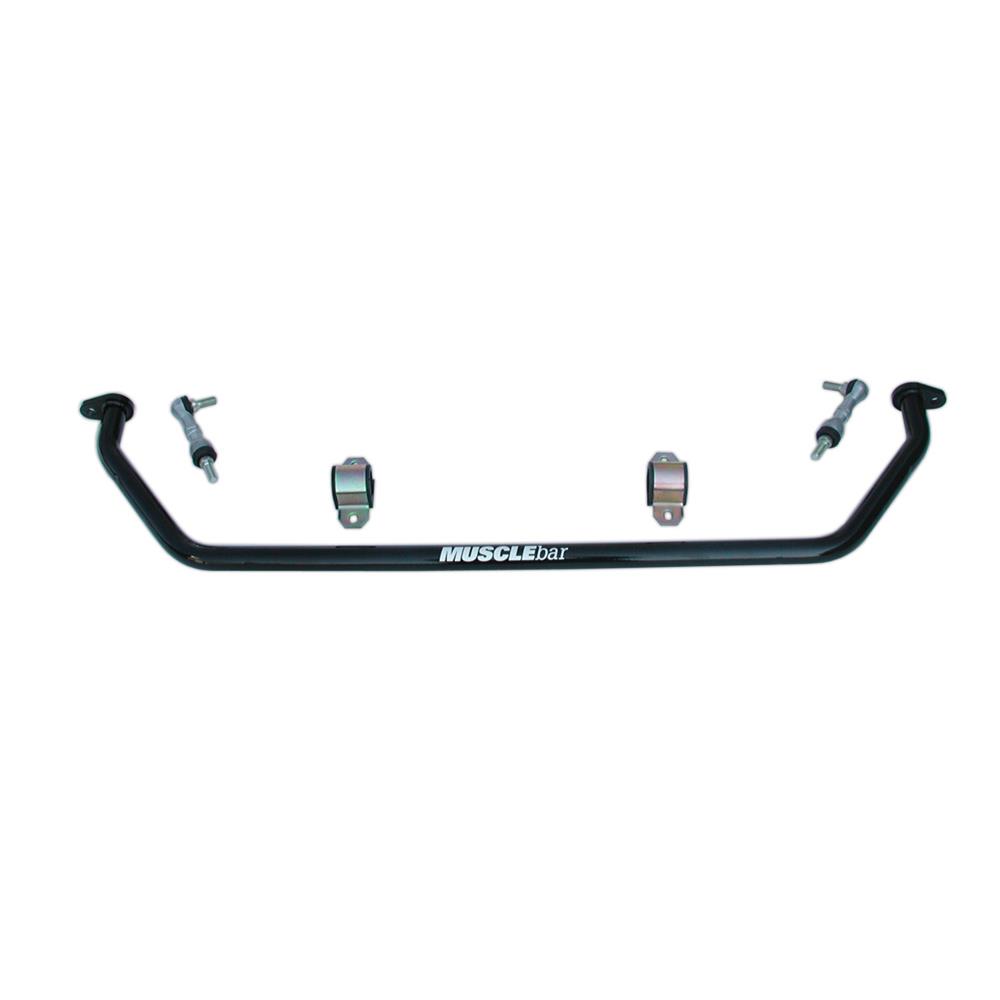

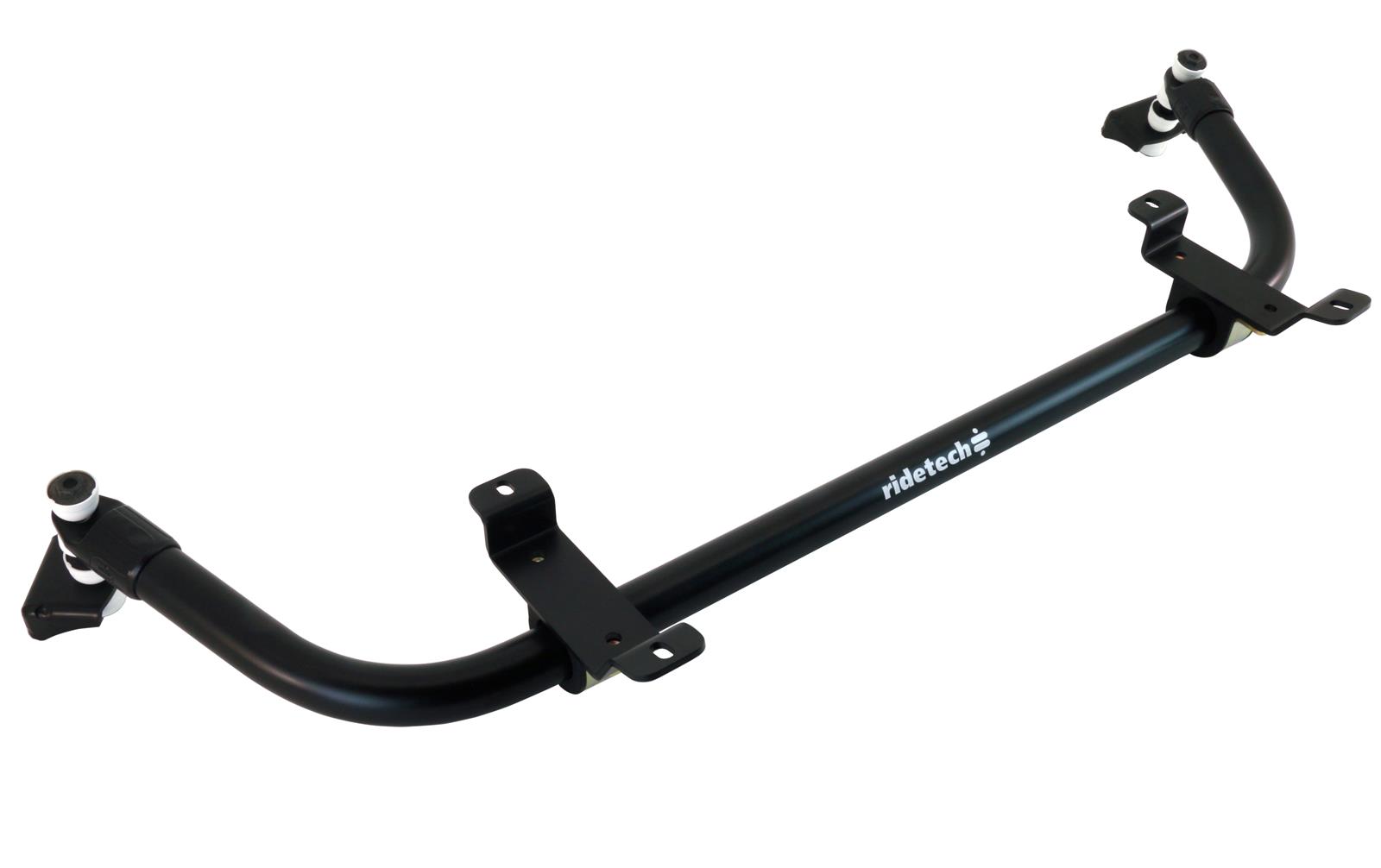

* Beefy 1.5 in. MuscleBar sway bar kit
* Exclusive 1,000,001-mile shock absorber warranty
