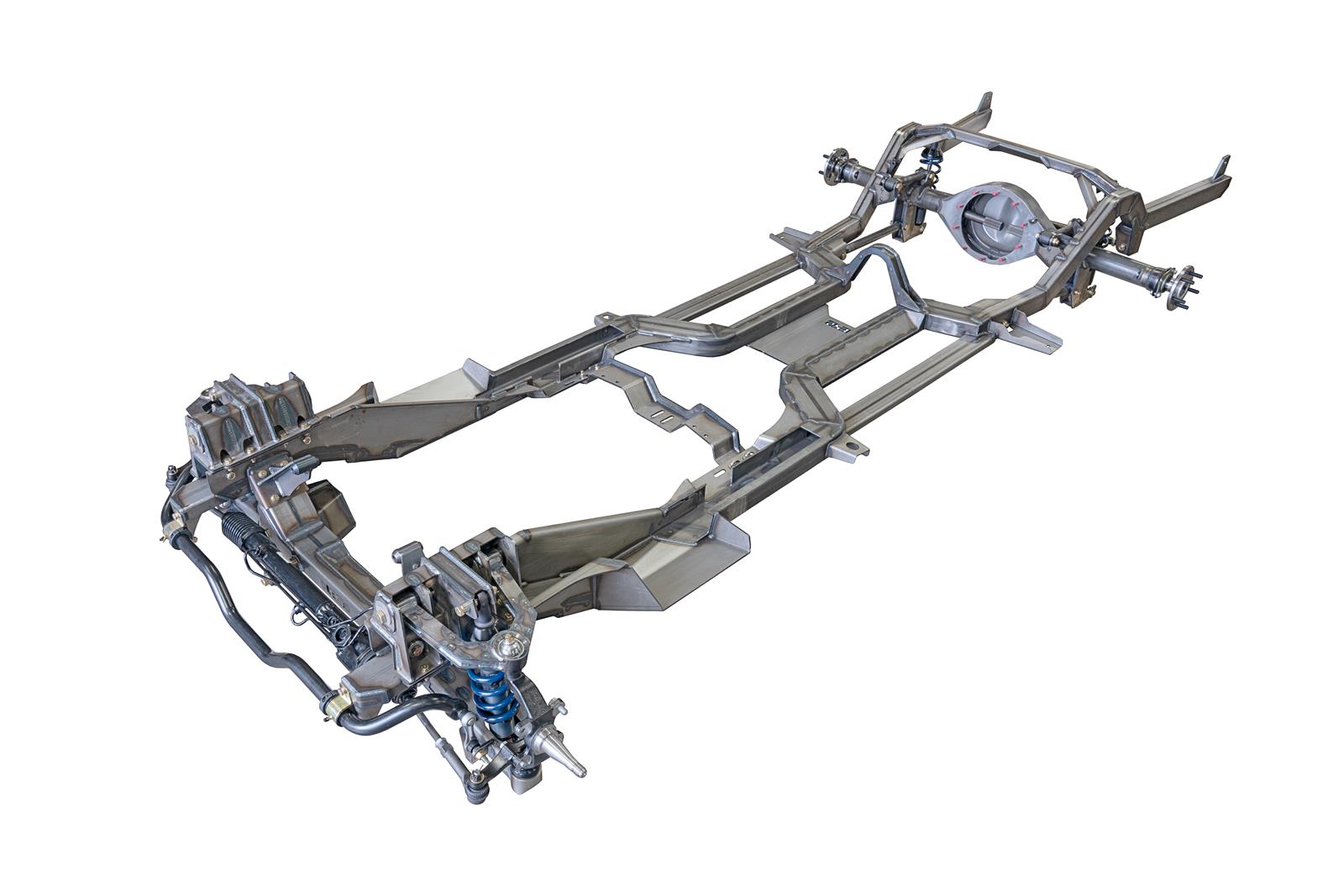

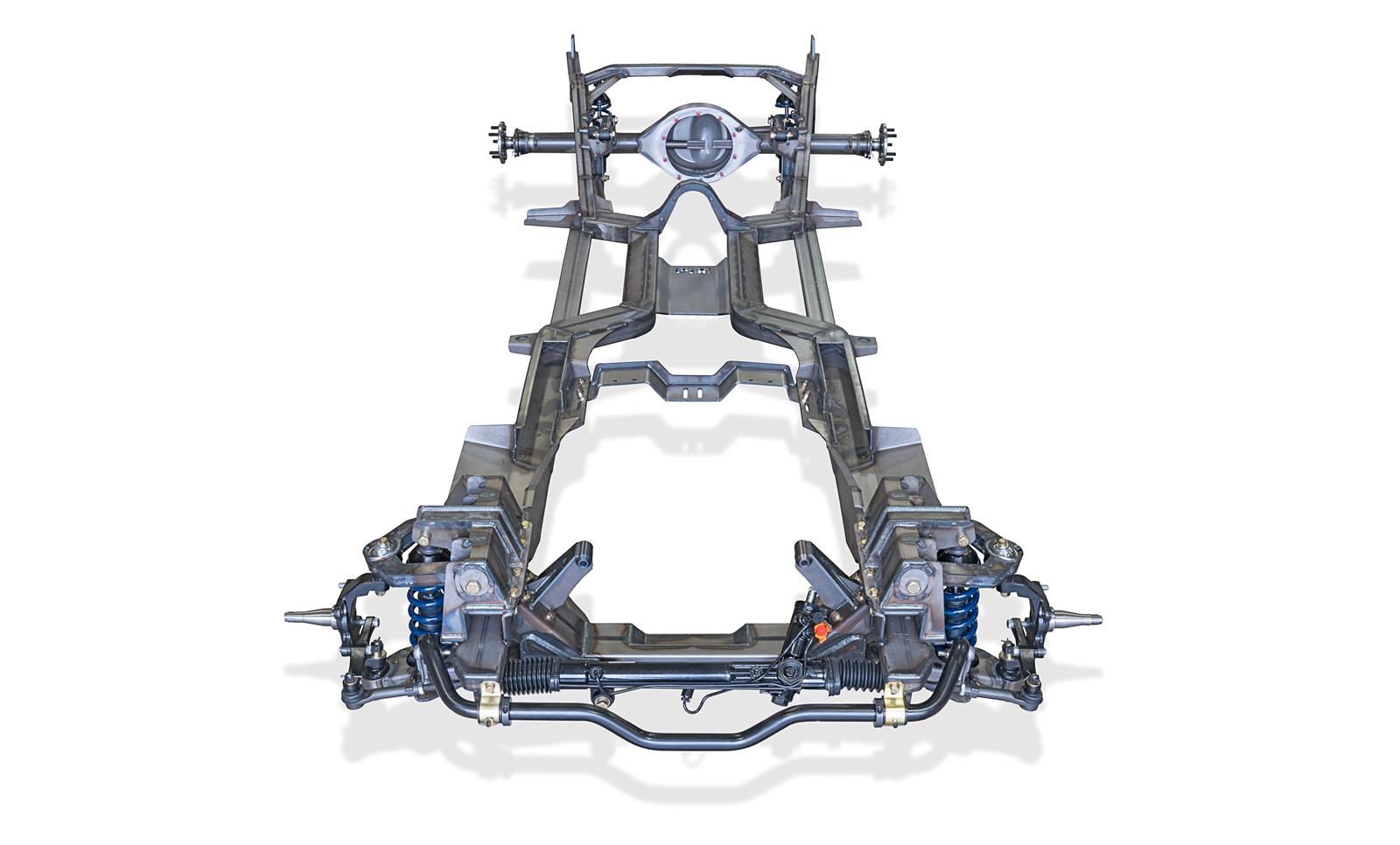

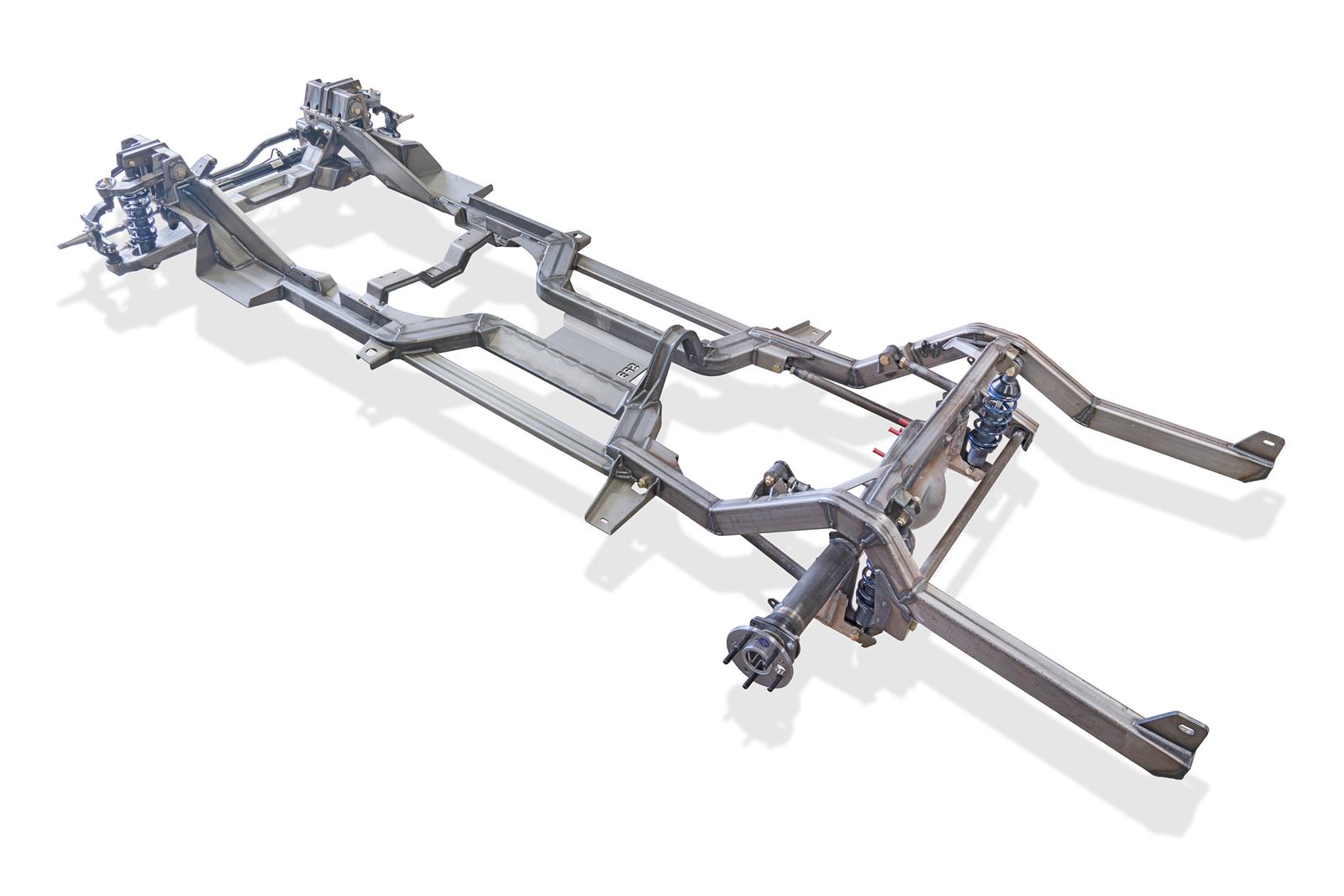

Roadster Shop SPEC Chassis Kits

Roadster Shop SPEC chassis kits offer Roadster Shop quality at an affordable price point. The SPEC Series is an engineering-focused approach, using the latest in manufacturing technology, to build the lightest, strongest, and easiest-to-install complete chassis systems. These technologies have been used to streamline procedures resulting in lower cost and shorter lead times.

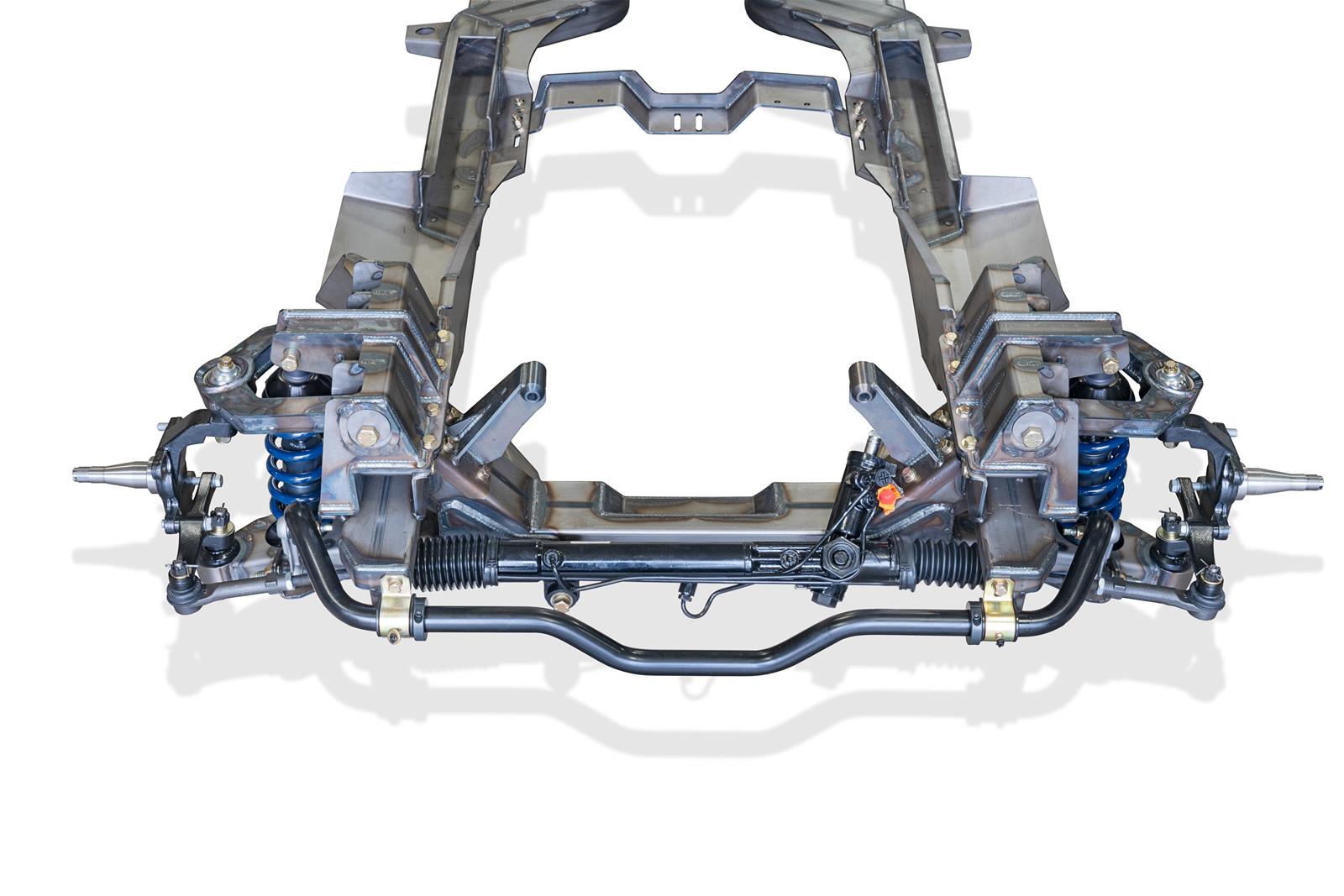

The SPEC independent front suspension is engineered to deliver outstanding performance in a user friendly package. It features proprietary suspension geometry designed to provide the best balance of ride quality and performance in its class.

Available as On-The-Shelf, pre-configured chassis or custom specifications to suit your needs.

Features and benefits of Roadster Shop SPEC chassis kits include:

* Full-chassis performance at a smaller component price
* Unparalleled quality
* Add the strength of a full frame with no floor modifications on most applications
* CNC laser-cut, TIG-welded, and contoured “Laser Rails” frame rails
* No kinks, bends, or stressed areas that are prone to flex like mandrel-bent tubing
* Stronger, lighter, and more precise
* CNC-located factory mounts built into the frame for easy, vehicle specific installation
* Frame rails accommodate mini-tubs and wider wheels
* Aggressive ride heights for the modern pro-touring look
* Choice of coilover or air suspension for many applications
* Air suspension chassis will lay the rockers on the ground (varies with tire size)
* Truck rear frame rail kick ups engineered for minimal bed modifications while allowing rockers to lie on the ground
* Crossmembers and chassis bracing allow 3 in. exhaust
* Adjustable, drop-out transmission mounts (tunnel mods may be necessary for larger T-56 and 4L80 transmissions)
* Vehicle specific body (cab and bed on trucks), bumper, and core support mounts
* Single-adjustable billet coilovers
* Power rack and pinion steering
* Easy-to-adjust upper A-arm eccentric mounts for fast and accurate alignments
* Wilwood Pro Spindles
* Parallel 4-bar rear suspension
* Ford 9 in. housing with 31 spline axles
* Optional mounts, coilovers, sway bars, brake packages, and rear-end gearing available on custom-order chassis
* 5 x 4.75 wheel bolt pattern
* Frames are shipped as bare steel
