Brand: Transmission Specialties
Manufacturer’s Part Number: 40022
Part Type: Automatic Transmissions
Product Line: Transmission Specialties Turbo 400 Failsafe Racing Transmissions
Summit Racing Part Number: TOS-40022
UPC: 193564454645
Number of Gears: 3
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Reverse
Valve Body Style: Full manual
Transmission Advertised Horsepower Rating: 2,000
Torque Converter Included: No
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Trans-Brake Included: Yes
Lockup Compatible: No
Transmission Pan Style: Deep
Transmission Pan Material: Aluminum
Transmission Pan Finish: Natural
Tailshaft Length (in.): 4.063 in.
Yoke Style: Slip-on
Input Spline Quantity: 30
Input Shaft Material: AerMet® 100
Input Shaft Style: TH350/400
First Gear Ratio (Automatic Transmissions): 2.48
Clutch Hub: Billet Steel
Transmission Case Style: Aftermarket
Transmission Case Material: Aluminum
Transmission Case Finish: Natural
Transmission Shield Built In: Yes
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: No
SFI Rating: SFI 4.1/ 30.1
Remanufactured: Yes
Quantity: Sold individually.
Notes: Failsafe TH400 with aftermarket SFI 2-piece case.
For over 40 years Transmission Specialties has been the trusted name in the performance automatic transmission industry. TSI has pioneered much of the technology that is now commonplace in the transmission marketplace. TSI transmissions are handcrafted from beginning to end by one highly skilled and experienced technician. This process ensures that you get the highest quality product every time.

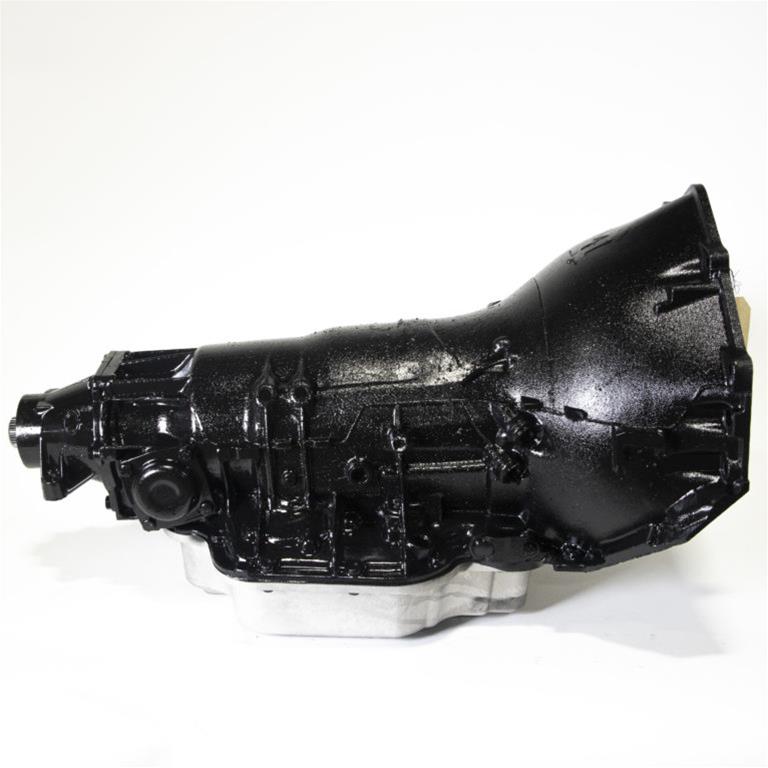

Transmission Specialties Turbo 400 “Failsafe” racing transmissions can be chosen with an OEM case or an aftermarket 2-piece SFI case. The key to the strength and durability of all Failsafe Turbo 400 transmissions is the custom-built Pro Mod Sprag assembly, which is designed to withstand 2,000 hp. Choose your preferred TSI transmission.
