Overview
Brand: Tremec
Manufacturer’s Part Number: TUET16884
Part Type: Manual Transmissions
Product Line: Tremec T-56 Magnum Manual Transmissions
Summit Racing Part Number: REM-TUET16884
Number of Gears: 6
Input Shaft Diameter: 1.125 in.
Input Spline Quantity: 26
Output Shaft Spline Quantity: 31
Bellhousing Included: No
Yoke Included: No
Yoke Style: Slip-on
Shifter Included: No
First Gear Ratio: 2.97:1
Second Gear Ratio: 2.10:1
Third Gear Ratio: 1.46:1
Fourth Gear Ratio: 1.00:1
Fifth Gear Ratio: 0.80:1
Sixth Gear Ratio: 0.63:1
Case Material: Aluminum
Remanufactured: No
Quantity: Sold individually.
Notes: Designed for electronic or mechanical speedometers. The 7-tooth internal speedometer drive gear is included.

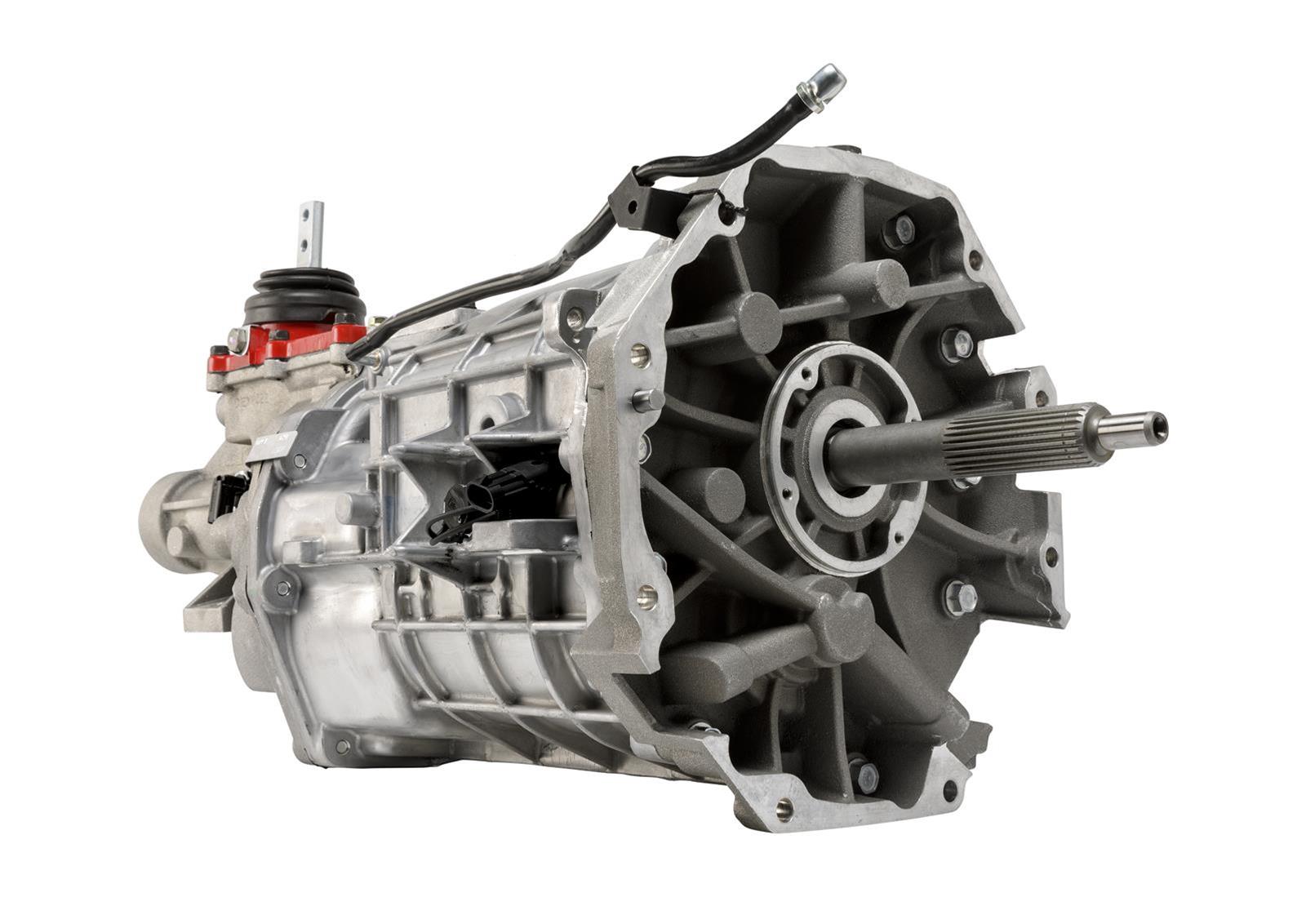

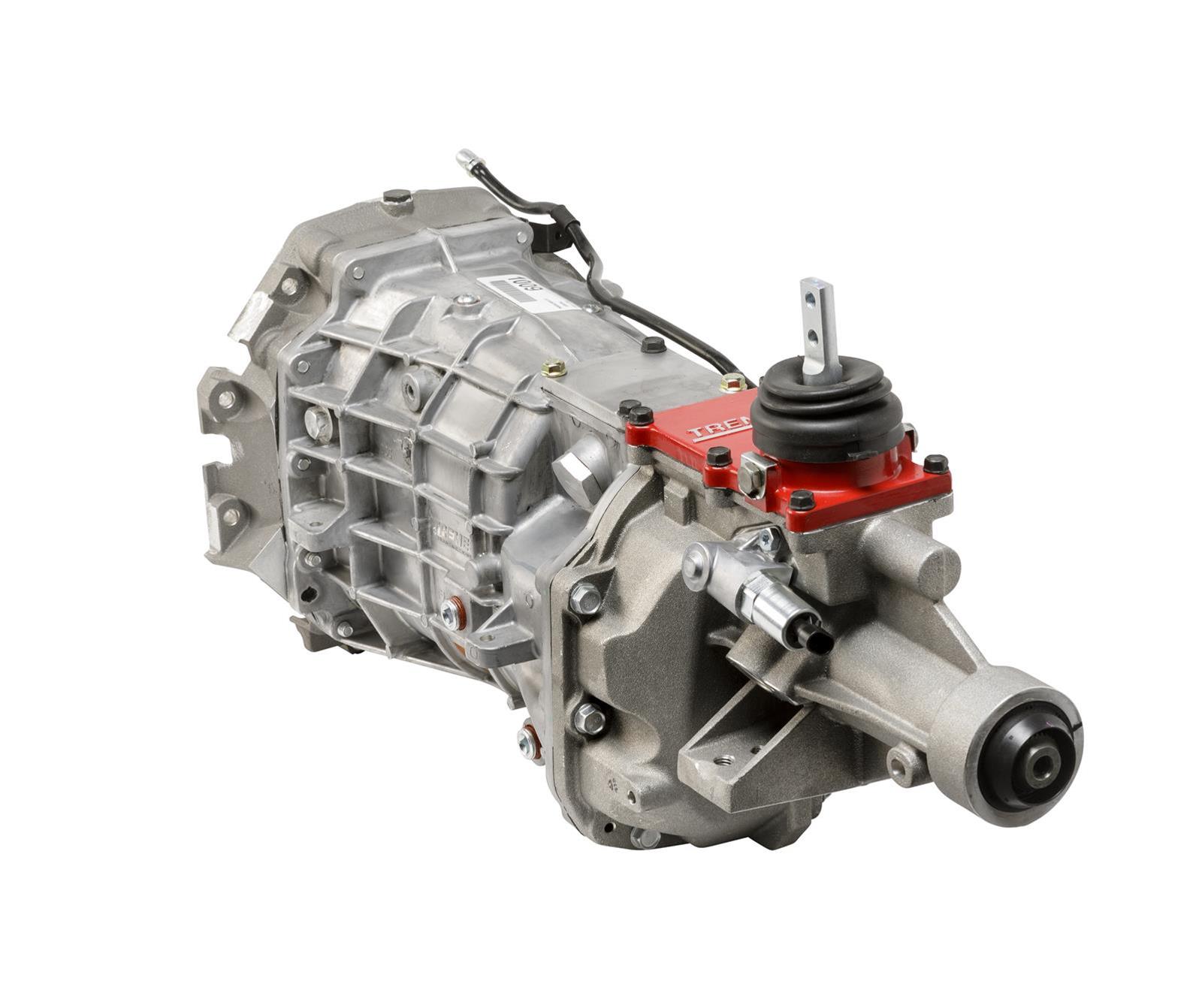

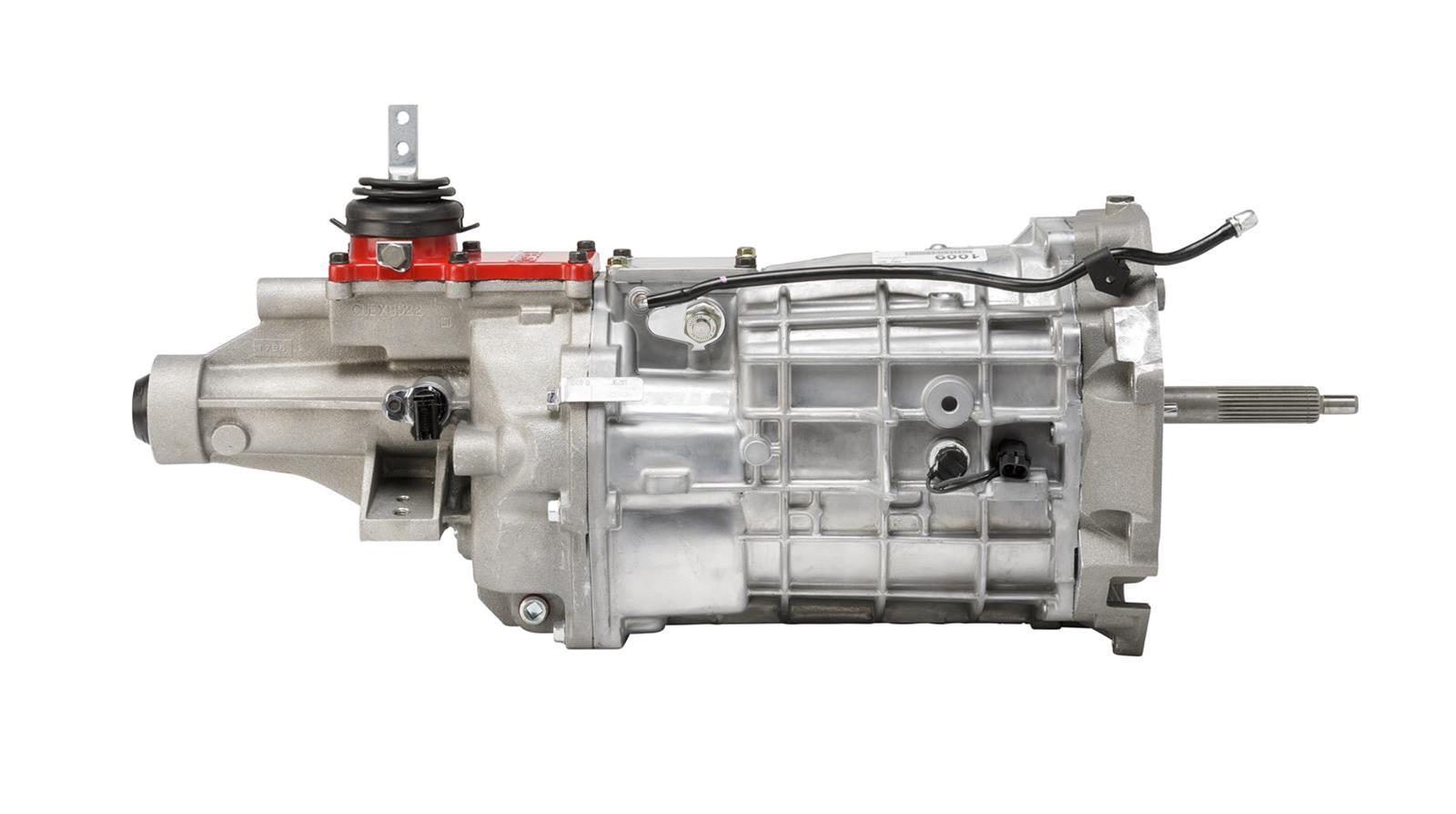

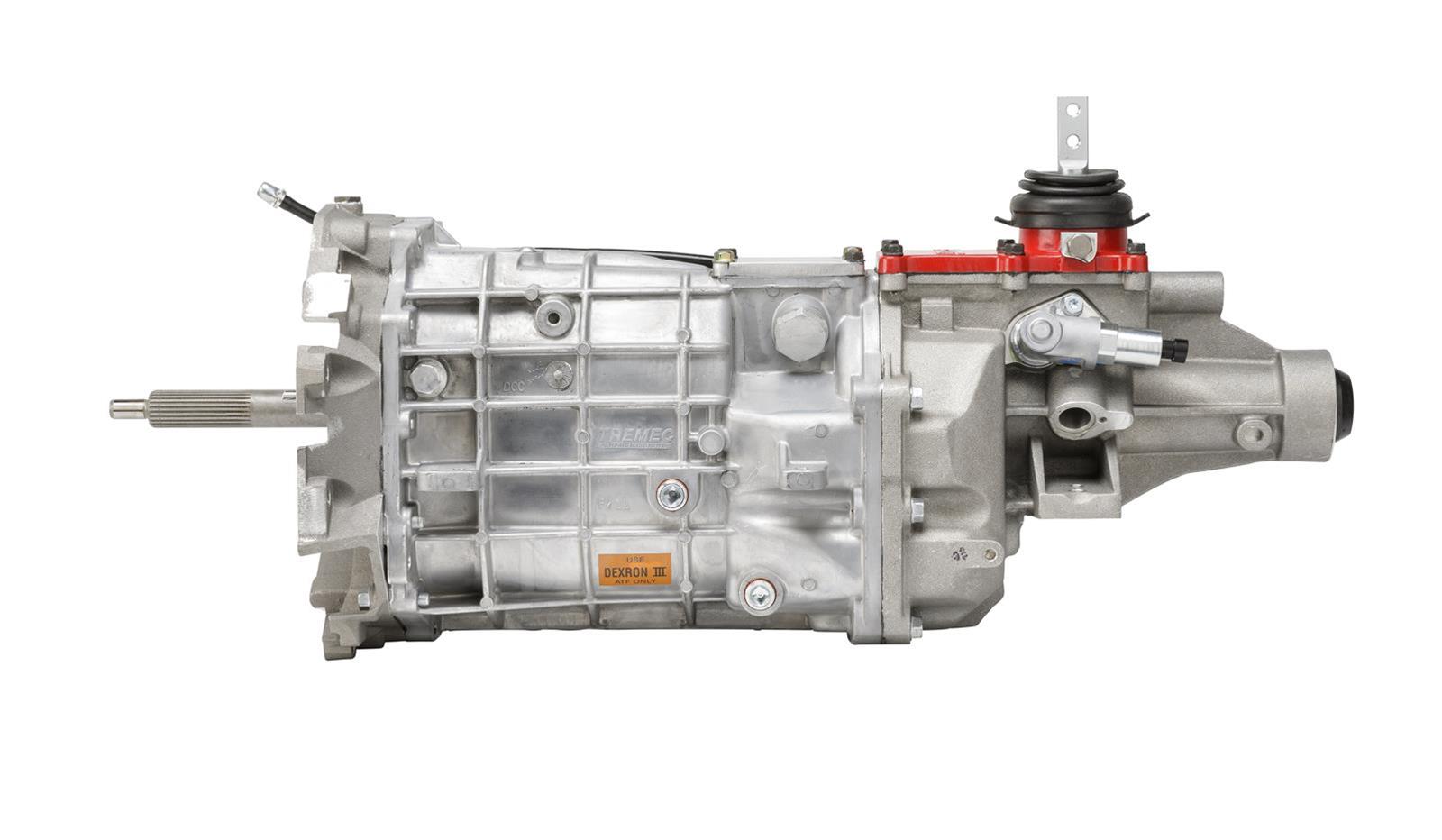

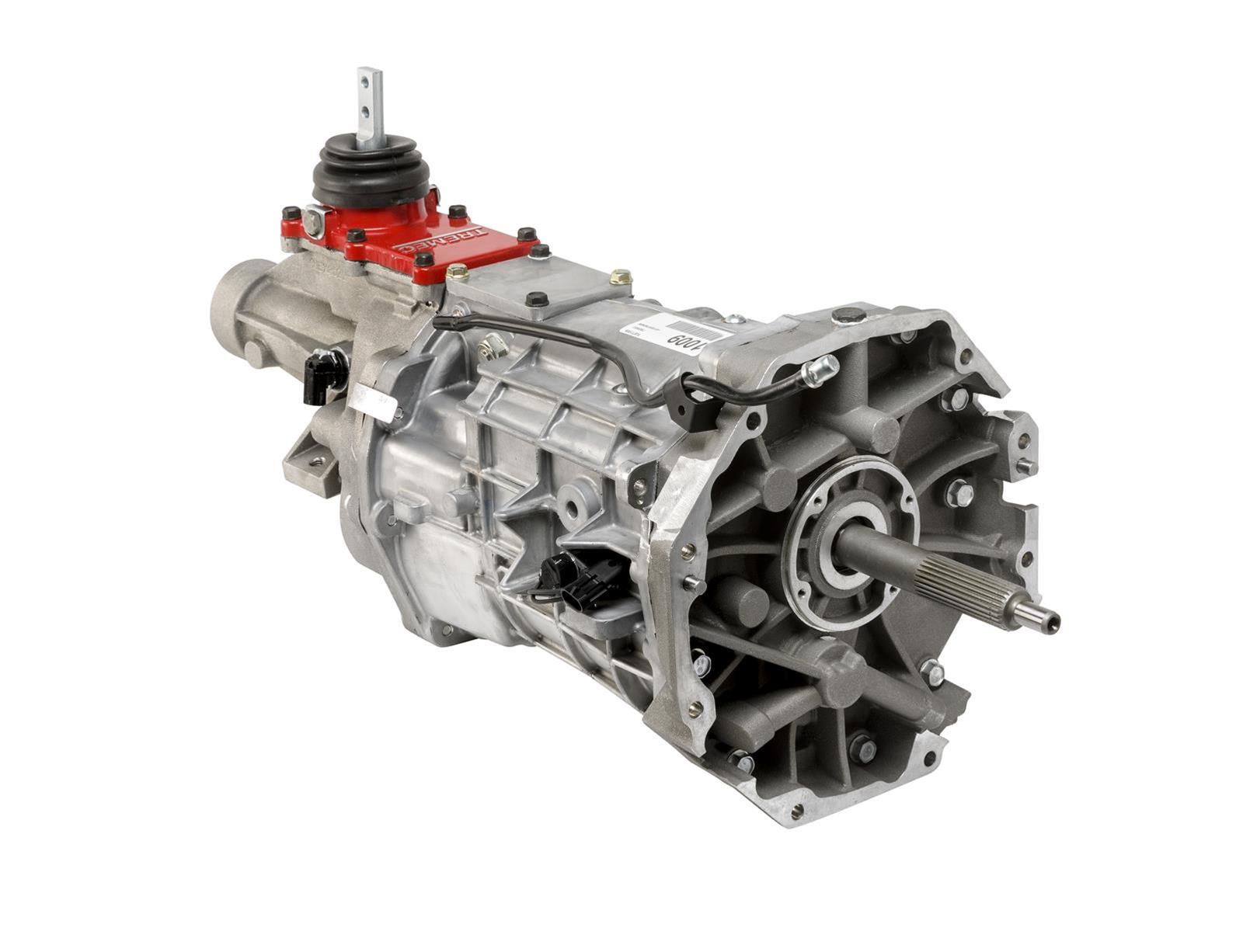

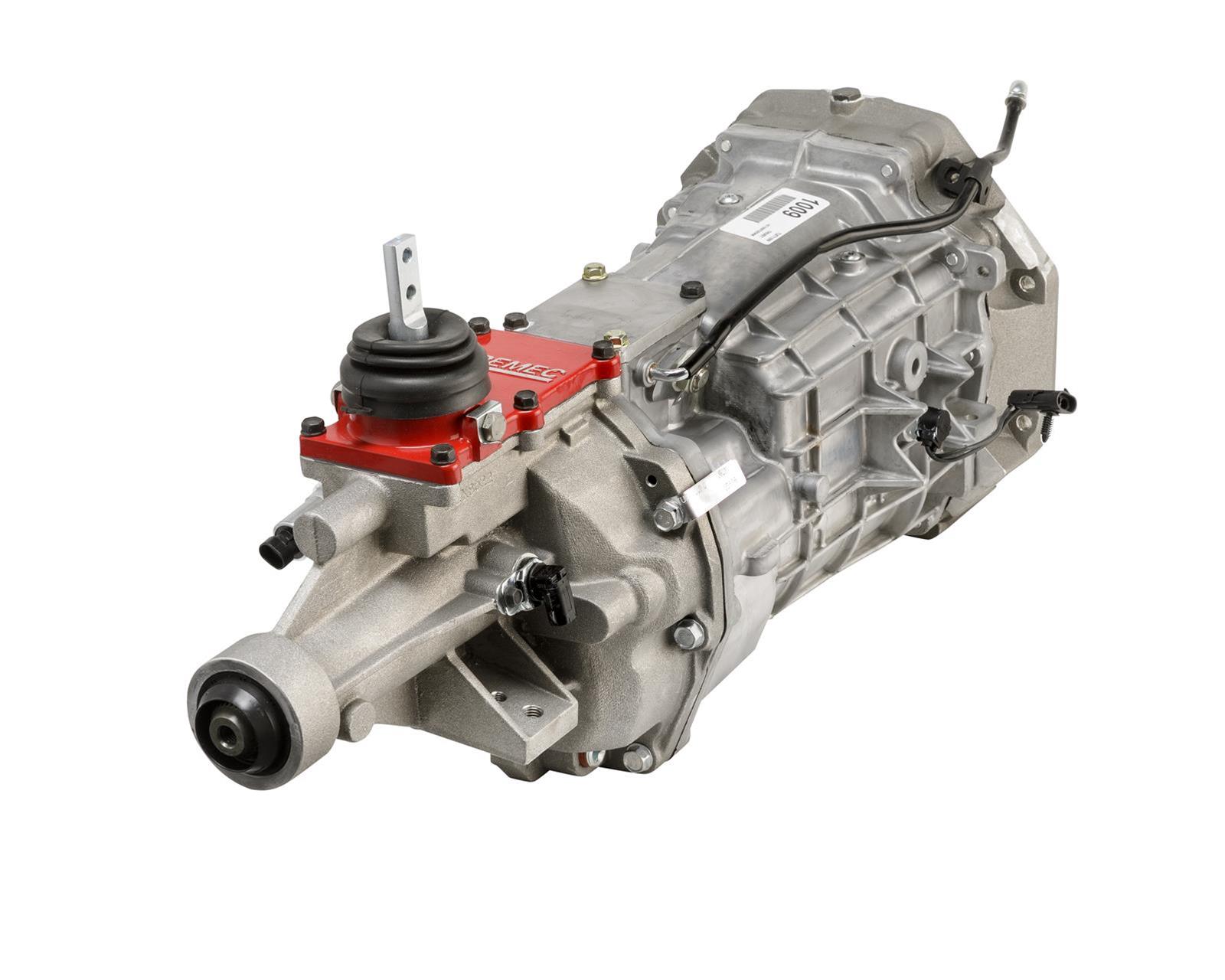

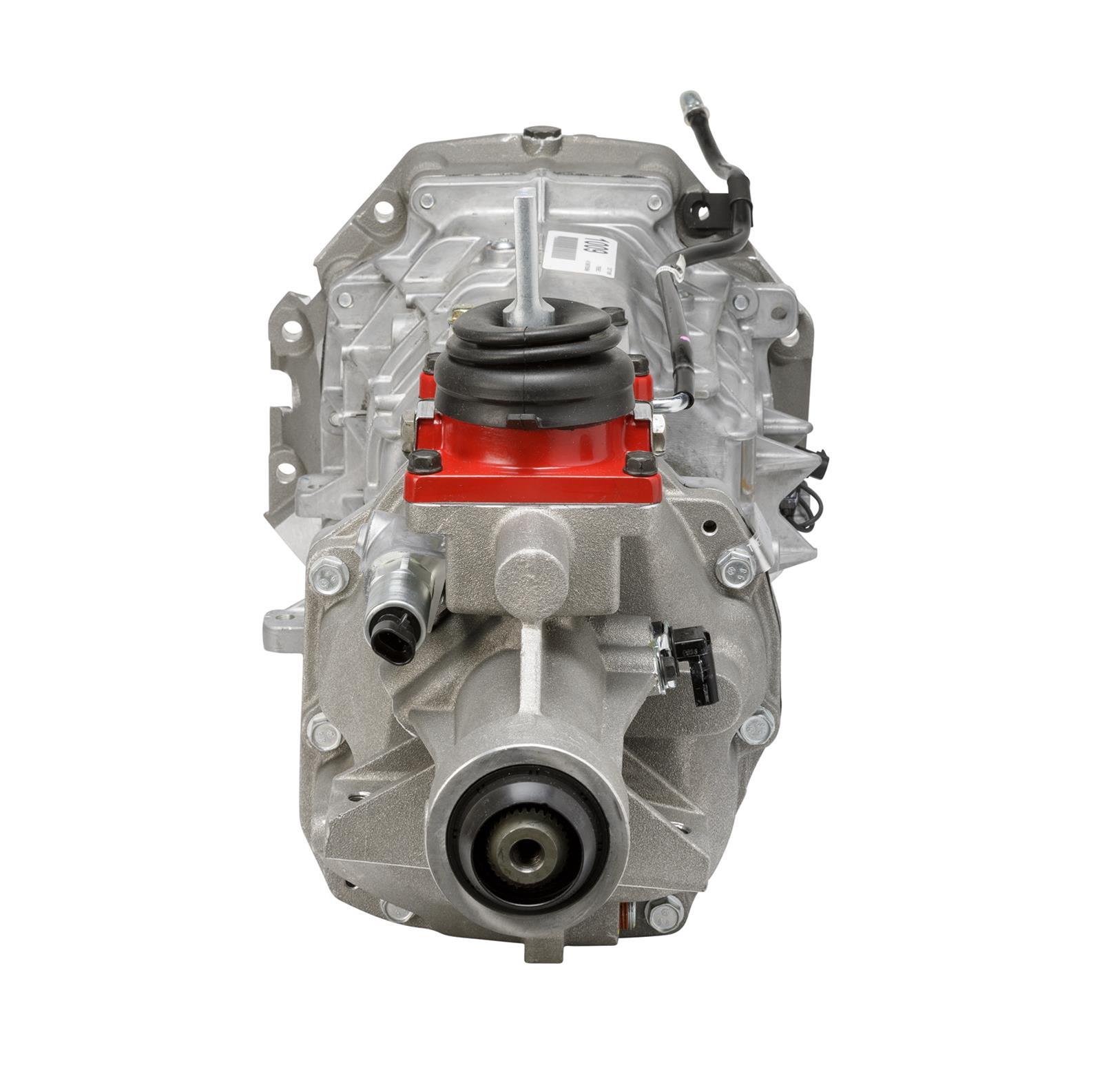

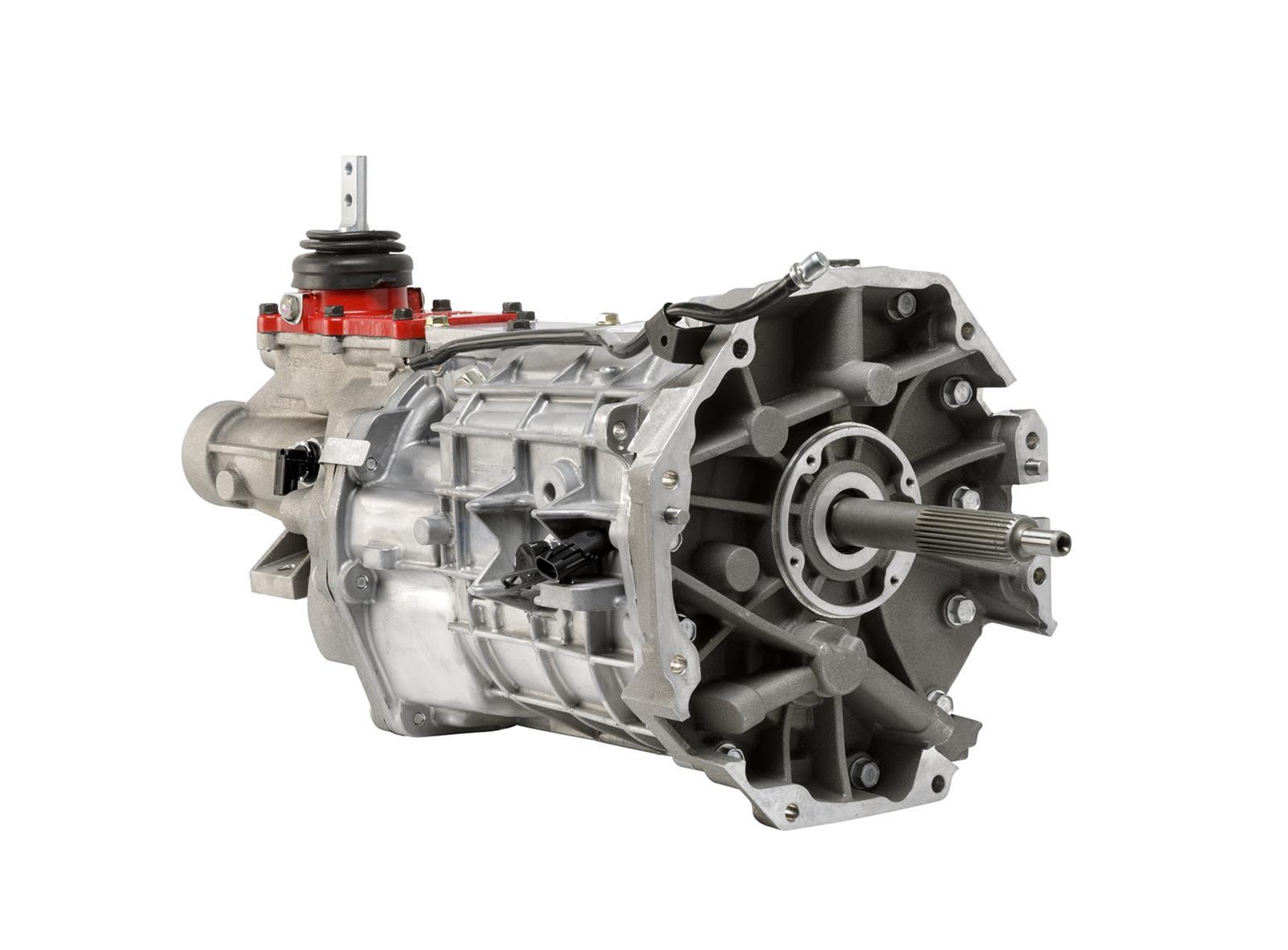

Tremec T-56 Magnum Manual Transmissions
Known for robust, superior quality, Tremec T-56 Magnum manual transmissions are brand new from the ground up with a 2.97 first gear. They can withstand up to 700 lbs.-ft. of torque, with gears featuring substantially increased face widths and 2-piece laser-beam welded construction. This allows for greater control of the tooth angles, pitch, and alignment.
Additional benefits include:
* Bolstered one-piece countershaft to resist distortion
* Stronger input shaft
* New synchronizers featuring fine-tooth angles
* Redesigned shift forks
* An extensively modified transmission case to prevent leaks under high-stress conditions and increase overall power-handling capabilities
