Brand: Wilwood Disc Brakes
Manufacturer’s Part Number: 140-13969-DR
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits
Summit Racing Part Number: WIL-140-13969-DR
UPC: 889545072013
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): 5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): 5 x 127.00mm
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.88 in./327.15mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-20
Parking Brake Provision: Yes
Parking Brake Style: Internal drum

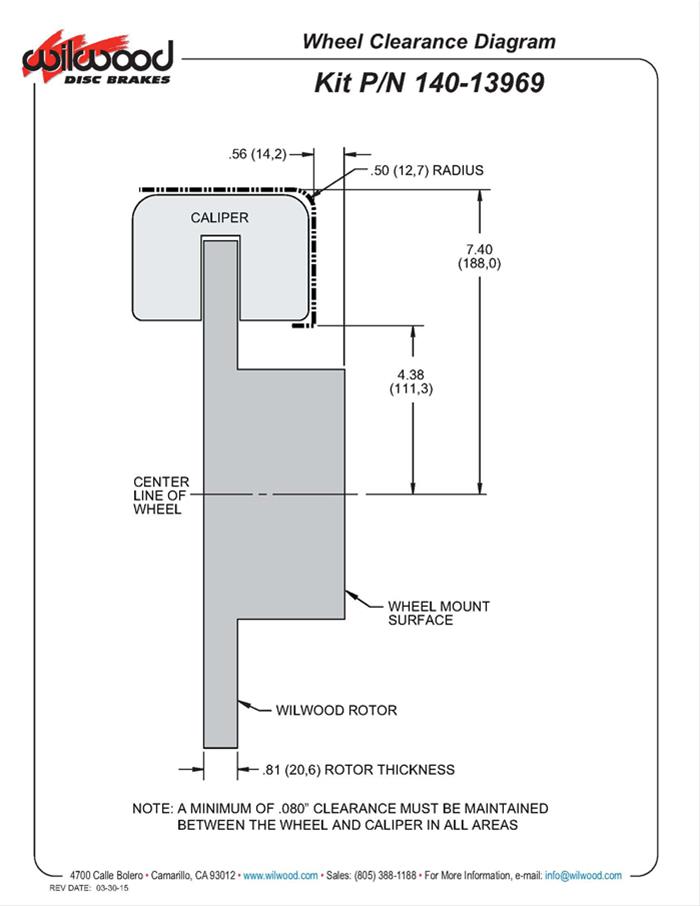

Minimum Recommended Wheel Diameter (in.): 17 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: Yes
Quantity: Sold as a kit.

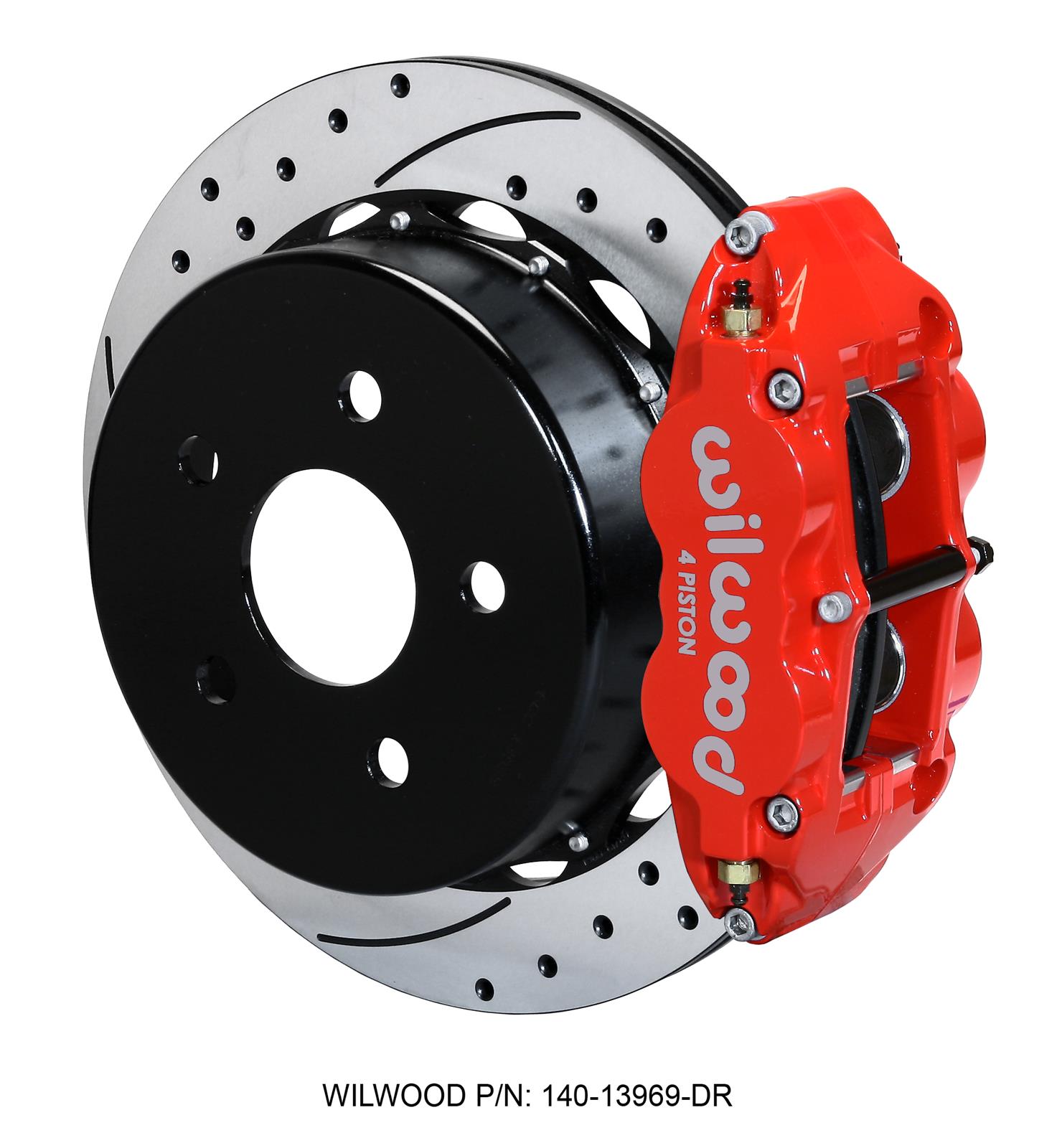

Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits are the perfect addition to front Big Brake upgrades for incredible stopping power. These disc brake kits feature FNSL4R 4-piston oversize forged billet aluminum calipers, 13 or 14 in. 2-piece premium rotors, and high performance BP-10 compound pads. Also included is a high-quality, drum-style parking brake assembly. The neatly hidden internal shoe system provides a clean installation, with superior static holding power for parking. Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits provide the extra power to reel in your beast. Order the kit designed for your vehicle application.
