Overview
Brand: Wilwood Disc Brakes
Manufacturer’s Part Number: 140-13867-C
Part Type: Disc Brake Kits
Product Line: Wilwood TX6R Big Brake Front Brake Kits
Summit Racing Part Number: WIL-140-13867-C
UPC: 889545071344
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Slotted surface
Front Rotor Construction: Vented
Front Rotor Diameter: 16.00 in./406.40mm
Front Rotor Thickness (in.): 1.50 in.
Brake Rotor Bolt Pattern (mm): 8 x 170.00mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Six
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Gray/Silver
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 20 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.

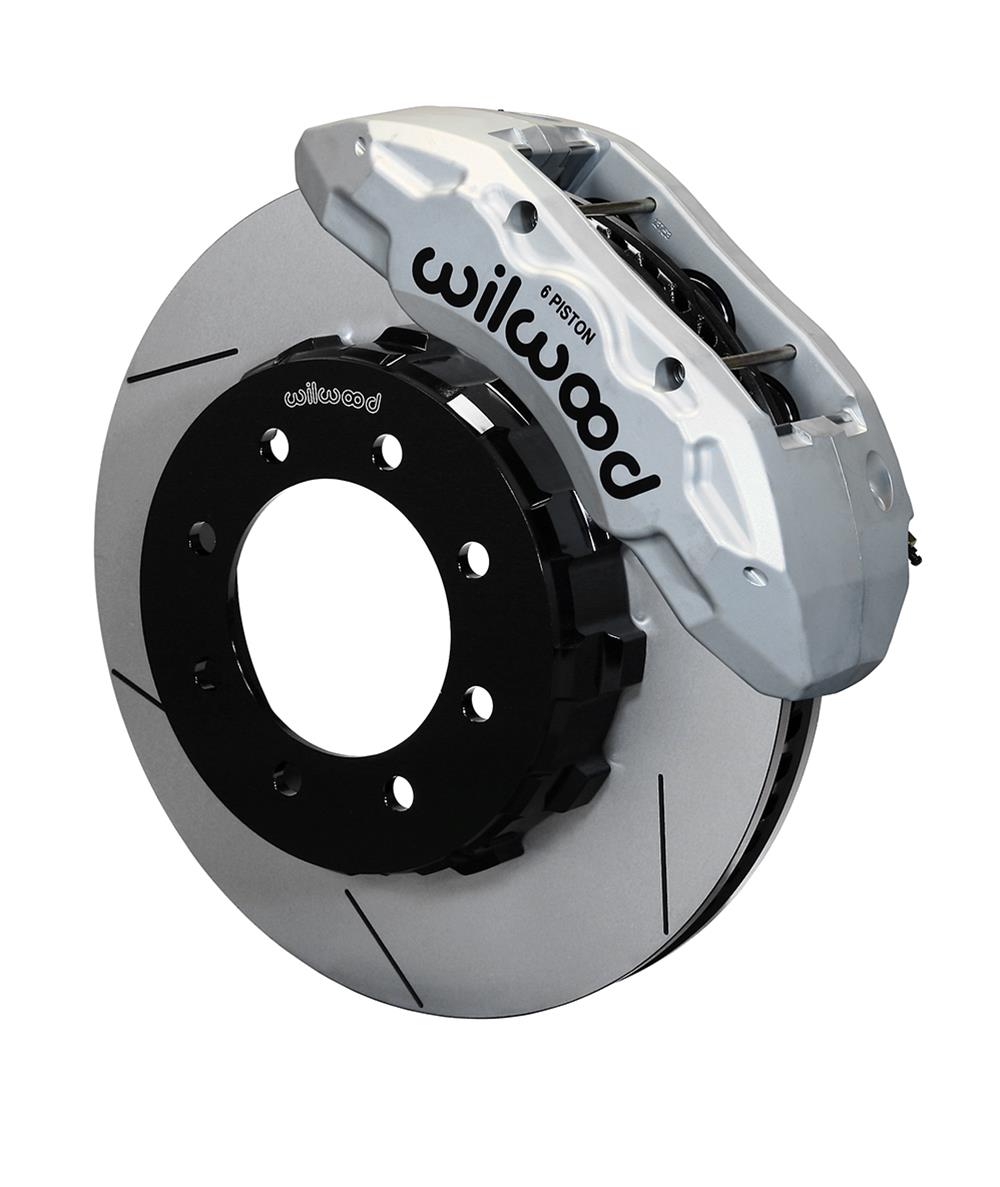

Wilwood TX6R Big Brake Front Brake Kits

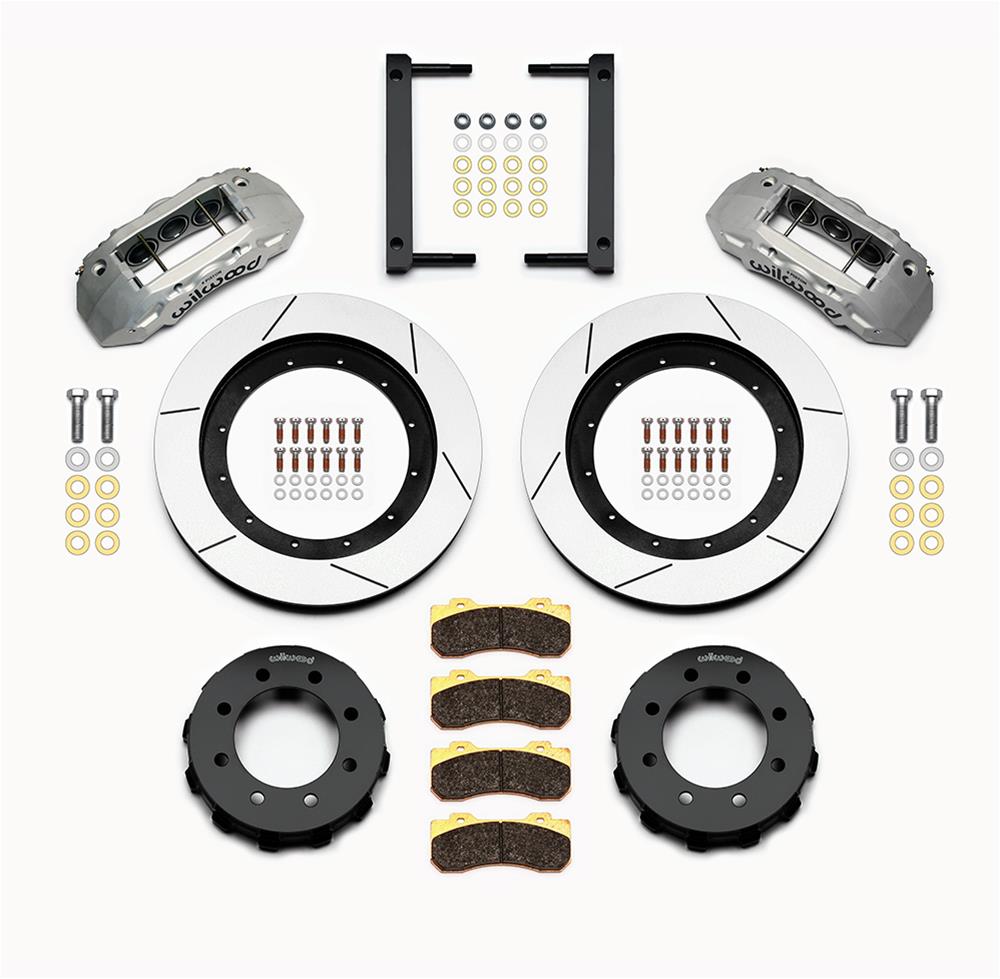

Wilwood TX6R Big Brake front brake kits deliver the ultimate in braking performance. Mating TX6R radial-mount 6-piston calipers and massive 15 in. to 16 in. GT-60 directional vane Spec-37 alloy rotors, these bolt-on kits offer consistent stopping power and extreme-duty durability under sustained high heat. The calipers are volume matched for compatibility with OE power brake system output. Kits also include radial-mount caliper brackets and all the necessary hardware to complete the installation. (Braided stainless steel flex lines will need to be purchased for some applications.)
