Name: BluePrint Engines GM 454 C.I.D. 460 HP Cruiser Dressed Long Block Crate Engines with Fuel Injection BP454CTF - electricalmarinesolutions.pl
Price: 8453.00 EUR
Availability: InStock

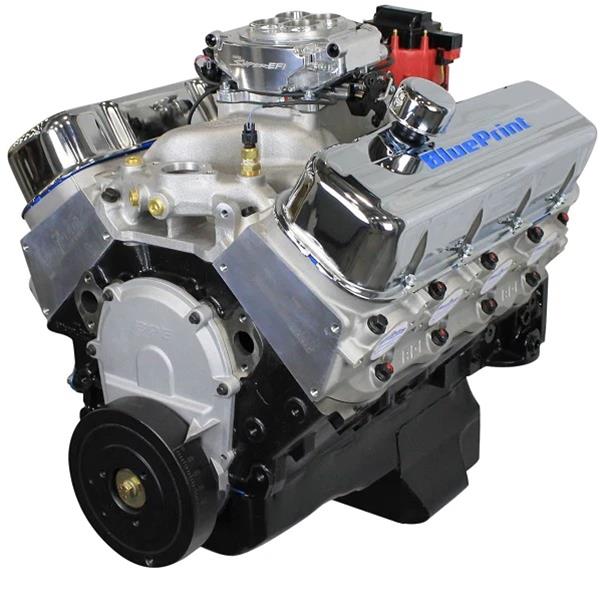

BluePrint Engines GM 454 C.I.D. 460 HP Cruiser Dressed Long Block Crate Engines with Fuel Injection BP454CTF

€8,453.00

Crate Engine, Dressed Longblock, 454 C.I. 460 HP, 479 TQ, Fuel Injection, Aluminum Heads, Roller Camshaft, Chevy, Big Block Gen IV, Each

Overview

Brand: BluePrint Engines

Manufacturer’s Part Number: BP454CTF

Part Type: Crate Engines

Product Line: BluePrint Engines GM 454 C.I.D. 460 HP Cruiser Dressed Long Block Crate Engines with Fuel Injection

Summit Racing Part Number: MLL-BP454CTF

UPC: 00887753802859

Crate Engine Family: Chevy Big Block

Actual Engine Displacement: 7.4L/454

Crate Engine Cylinder Head Material: Aluminum

Engine Block Material: Cast iron

Advertised Compression Ratio: 9.85:1

Assembled: Yes

Engine Balance: External, 42.5 oz. imbalance

Cam Style: Hydraulic roller, OE roller

Rear Main Seal Style: 1-piece

Intake Manifold Included: Yes

Intake Manifold Style: Fuel Injection

Cylinder Heads Included: Yes

Carburetor Included: No

Throttle Body Included: Yes

Distributor Included: Yes

Oil Pan Included: Yes

Valve Covers Included: Yes

Timing Cover Included: Yes

Water Pump Included: No

Harmonic Balancer Included: Yes

Flexplate Included: No

Flywheel Included: No

Air Cleaner Included: No

Spark Plugs Included: No

Spark Plug Wires Included: No

Computer Included: Yes

Wiring Harness Included: No

Supercharger Included: No

Remanufactured: No

Quantity: Sold individually.

Notes: New BluePrint Cast Iron 4-bolt main block. Does not include fuel pump or lines. This engine is not designed, nor intended to be used in any marine applications.

BluePrint Engines GM 454 C.I.D. 460 HP Cruiser Dressed Long Block Crate Engines with Fuel Injection

BluePrint Engines GM 454 C.I.D. 460 HP Cruiser Dressed Long Block crate engines with fuel injection are available in three models—two with complete front accessory drive systems. All engines deliver 460 hp and 479 lbs.-ft. of torque. They feature aluminum heads, hydraulic roller cam, forged crank, hypereutectic pistons, and a compression ratio of 9.85 to 1. Additional specifications include:

* BLOCK:
NEW BluePrint Cast Iron Block, 454 BBC
Manufactured and Machined in the USA
4-Bolt Main
4.000 in. Stroke, Bored .060 in. over
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Standard Deck

* ROTATING ASSEMBLY:
New BluePrint Forged Crankshaft
4.000 in. Stroke, 4.250 in. Bore
OEM type 6.135 in. connecting rods with 150,000 psi bolts
Hypereutectic pistons
External

* CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads
119cc chamber
2.30 in. intake/1.88 in. exhaust valves
316cc intake/124cc exhaust runners
Cylinder heads feature a .300 in. raised exhaust port vs. an OEM casting
Must verify header/exhaust clearance

* CAM SPECS:
Cam Type: Roller
.501 Intake .510 Exhaust
216 Intake / 228 Exhaust duration
@ .050 – 112 degree lobe separation

* IGNITION TIMING:
10-16 degrees initial and total timing 32-36 degrees at 3,500 rpm

* ALSO INCLUDES:
Intake Manifold single plane, satin aluminum
Sniper EFI System
Pro Billet Distributor
Harmonic balancer
Valve covers, oil pan and timing cover
Dyno test results shipped with engine
30 month / 50,000 mile warranty

* NOTES: This engine is an excellent cruiser and daily driver engine. This engine makes up to 15 in. of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel. Features External 42.5 oz. imbalance. Recommend GM flywheel 14096987, or TCI flexplate 399973.

— INCLUDED ONLY ON MODEL BP454CTFKB:
* Installed black complete front accessory drive system with A/C, P/S, WP, all belts and pulleys.

— INCLUDED ONLY ON MODEL BP454CTFK:
* Installed polished complete front accessory drive system with A/C, P/S, WP, all belts and pulleys.
