Name: Edelbrock Gen III 426 HEMI E-Force Supercharged Long Block Crate Engines 46127 - electricalmarinesolutions.pl
Price: 27137.00 EUR
Availability: InStock

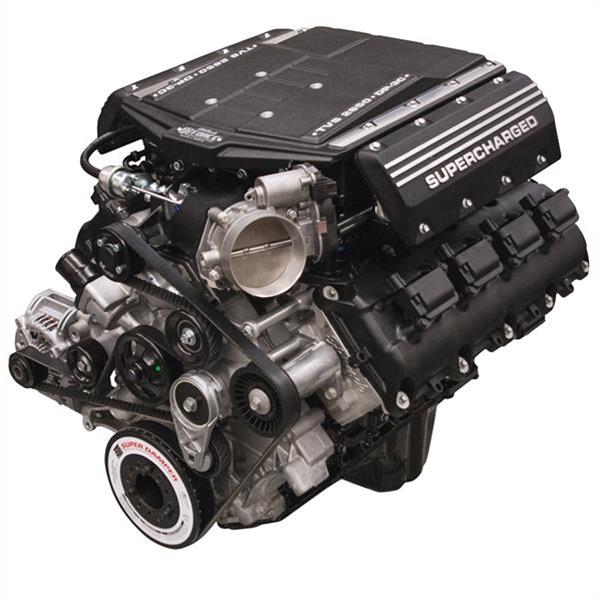

Edelbrock Gen III 426 HEMI E-Force Supercharged Long Block Crate Engines 46127

€27,137.00

Crate Engine, 426 C.I.D. 808 HP, Gen III HEMI,DP3C, TVS2650 Supercharged, with Accessories/ Electronics and Tune, Assembled, Chrysler, Dodge, Each

Overview

Brand: Edelbrock

Manufacturer’s Part Number: 46127

Part Type: Crate Engines

Product Line: Edelbrock Gen III 426 HEMI E-Force Supercharged Long Block Crate Engines

Summit Racing Part Number: EDL-46127

UPC: 085347461271

Crate Engine Family: Mopar Hemi Gen III

Actual Engine Displacement: 7.0L/426

Crate Engine Cylinder Head Material: Aluminum

Engine Block Material: Cast iron

Advertised Compression Ratio: 9.9:1

Assembled: Yes

Engine Balance: Internal

Cam Style: Hydraulic roller, OE roller

Rear Main Seal Style: 1-piece

Intake Manifold Included: Yes

Intake Manifold Style: Fuel Injection

Cylinder Heads Included: Yes

Carburetor Included: No

Throttle Body Included: Yes

Distributor Included: No

Oil Pan Included: Yes

Valve Covers Included: Yes

Timing Cover Included: Yes

Water Pump Included: Yes

Harmonic Balancer Included: Yes

Flexplate Included: No

Flywheel Included: No

Air Cleaner Included: No

Spark Plugs Included: No

Spark Plug Wires Included: No

Computer Included: Yes

Wiring Harness Included: Yes

Supercharger Included: Yes

Supercharger Model: Eaton TVS 2650

Remanufactured: No

Quantity: Sold individually.

Edelbrock Gen III 426 HEMI E-Force Supercharged Long Block Crate Engines

Edelbrock Gen III 426 HEMI E-Force Supercharged long block crate engines start with brand new iron Mopar 392 blocks. The engines are then assembled with high-quality components, including Edelbrock E-Force supercharger systems featuring Eaton TVS R2650 rotors—which provide unparalleled efficiency, whisper quiet operation, and OEM reliability. A 4.090 in. bore and 4.050 in. stroke help these HEMI engines produce incredible low-end torque, while the 9.9:1 compression ratio allows for safe and reliable supercharged performance on 91 octane pump gas. Edelbrock Gen III 426 HEMI E-Force Supercharged long block crate engines are available with or without electronics (ECU with tune and wiring harness).

Engine Specifications:

* Displacement: 426 c.i.d.
* Horsepower: 808 hp
* Torque: 762 lbs.-ft.
* Compression: 9.9:1
* Block: New iron Mopar 392
* Crankshaft: Forged 4340
* Pistons: Forged aluminum—5cc
* Rods: Forged H-beam
* Camshafts: Comp Cams 226 degrees/234 degrees, .619/.612, 116 LSA
* Rocker arms: Mopar OEM
* Induction: E-Force R2650 Supercharger
* Cylinder heads: Edelbrock Performer RPM
* Finish: Black powdercoat
* Warranty: 2-year/unlimited mileage

The high twist, 4-lobe R2650 rotor design is 15 percent larger than the TVS 2300 and features several improvements to maximize efficiency and performance at upper rpms.

Improvements and advantages of R2650 rotors over R2300 rotors:

* 170 degree twist (versus 160)
* Better sealing with optimized length-to-diameter ratio
* Increased durability with larger bearings and timing gears
* Pressure relief ports in bearing plate for reduced input power
* 4 percent more efficient
* 15 percent larger displacement
* 18 percent less input power required
* 25 percent more airflow at 18,000 rpm and 14 psi boost (2.0 pressure ratio)
