Brand: Wilwood Disc Brakes
Manufacturer’s Part Number: 140-8992-DR
Part Type: Disc Brake Kits
Product Line: Wilwood TC6R Big Brake Truck Front Brake Kits
Summit Racing Part Number: WIL-140-8992-DR
UPC: 889545030266
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Cross-drilled/Slotted surface
Front Rotor Construction: Vented
Front Rotor Diameter: 16.00 in./406.40mm
Front Rotor Thickness (in.): 1.38 in.
Brake Rotor Bolt Pattern (in.): 6 x 5.50 in.
Brake Rotor Bolt Pattern (mm): 6 x 139.70mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Six
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Red
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 20 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Fits models with factory cast iron or aluminum spindles.
Special Attention: Fits models with 6-lug only.

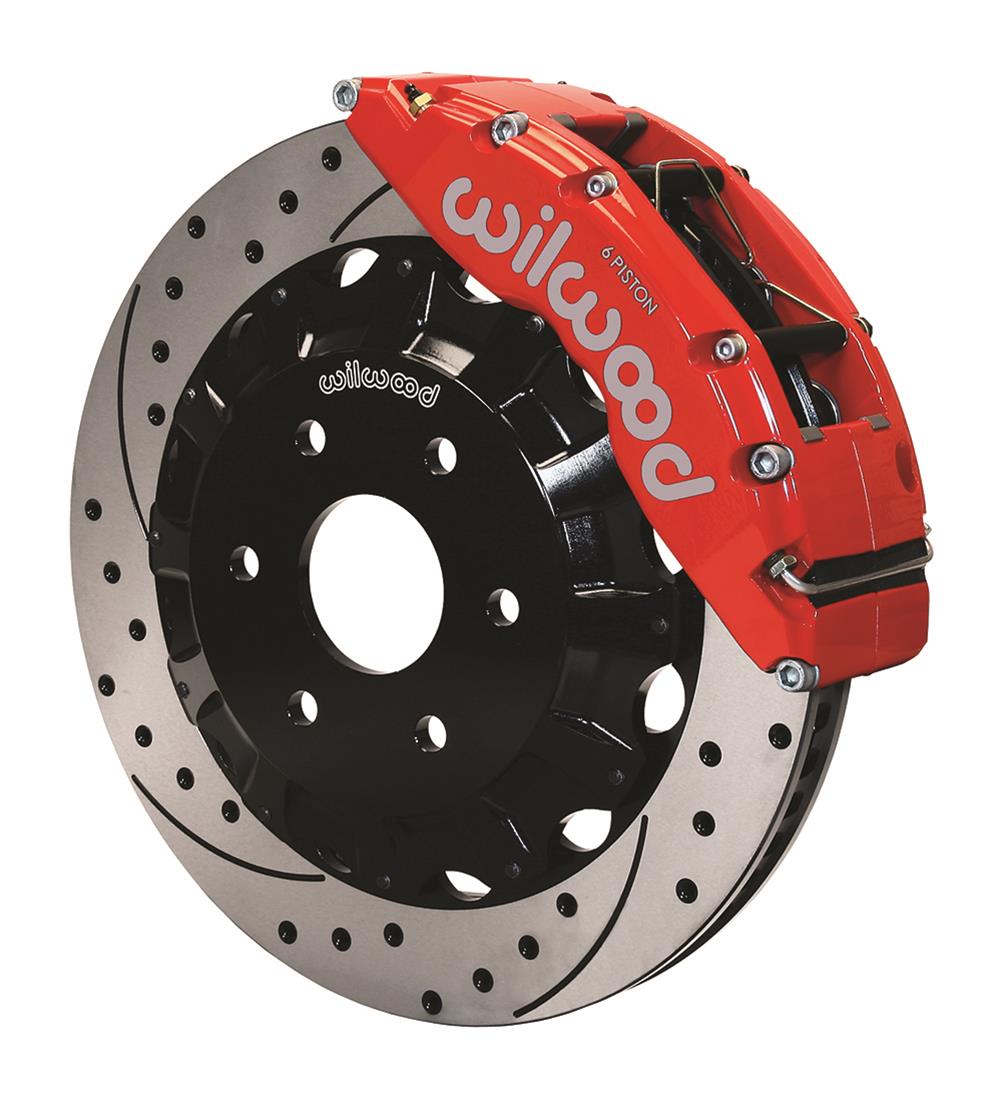

These Wilwood TC6R big brake front kits feature everything you need for maximum stopping power. They use a TC6R billet aluminum brake caliper, which generates unmatched clamping efficiency through six thick-walled stainless steel pistons. Those are matched to an advanced formula high-friction compound for quick response and extended fade resistance. These Wilwood TC6R big brake front kits are available with your choice of standard 16 in. directional-vane GT rotors or the high performance 16 in. cross-drilled, slotted, zinc-washed SRP rotors. Each rotor is mated to high-strength, forged aluminum hats that are rib-reinforced to carry extreme loads and are black anodized to prevent oxidation. Get your truck or SUV stopped quickly with one of these Wilwood TC6R big brake front kits.
